Car Speakers

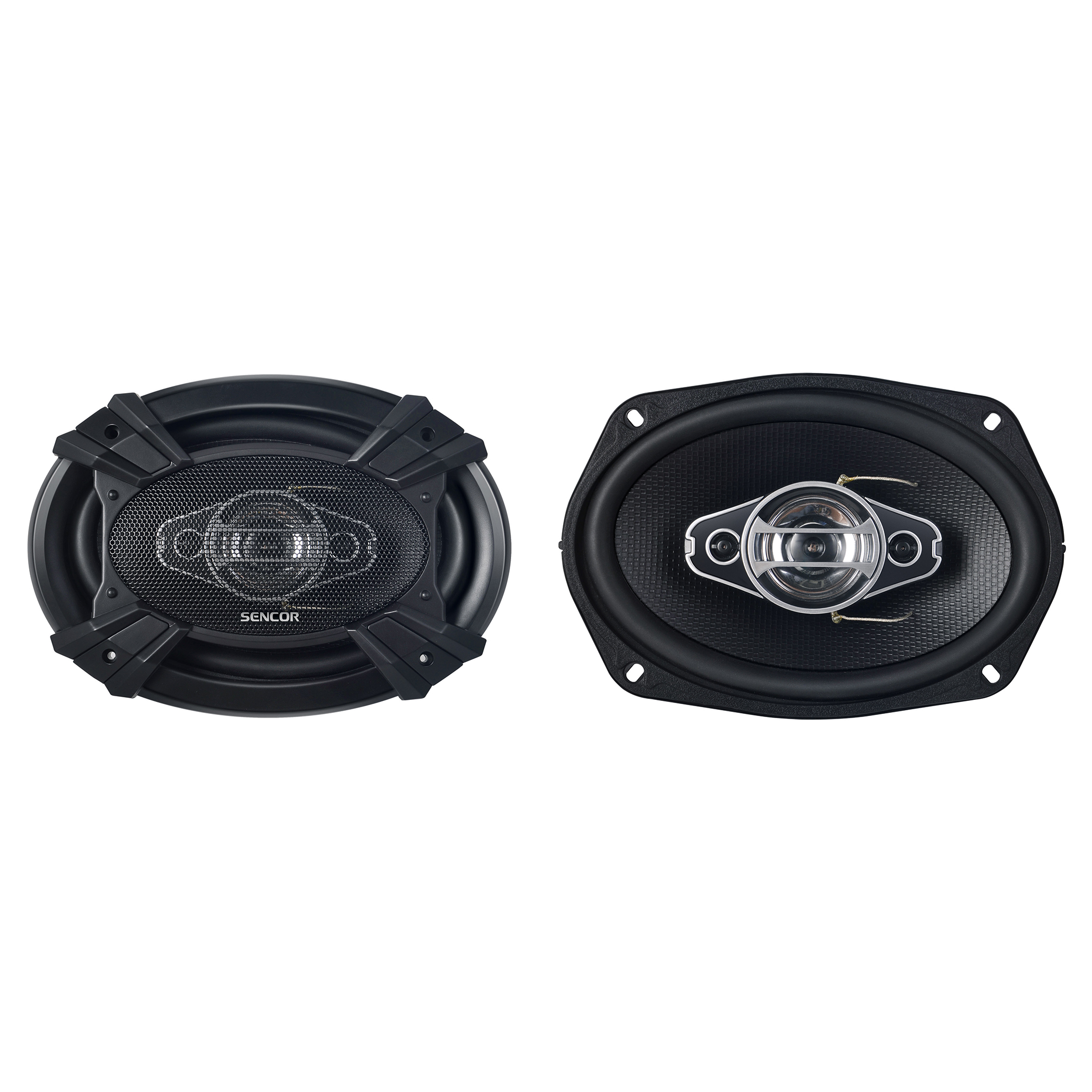

SCS BX6902 4-Band Car Speakers

  • 6"x 9" Oval, Dimension (165x235 mm)
  • 4-Band Coaxial
  • Maximum Power 105W
Where to buy
0.00 €

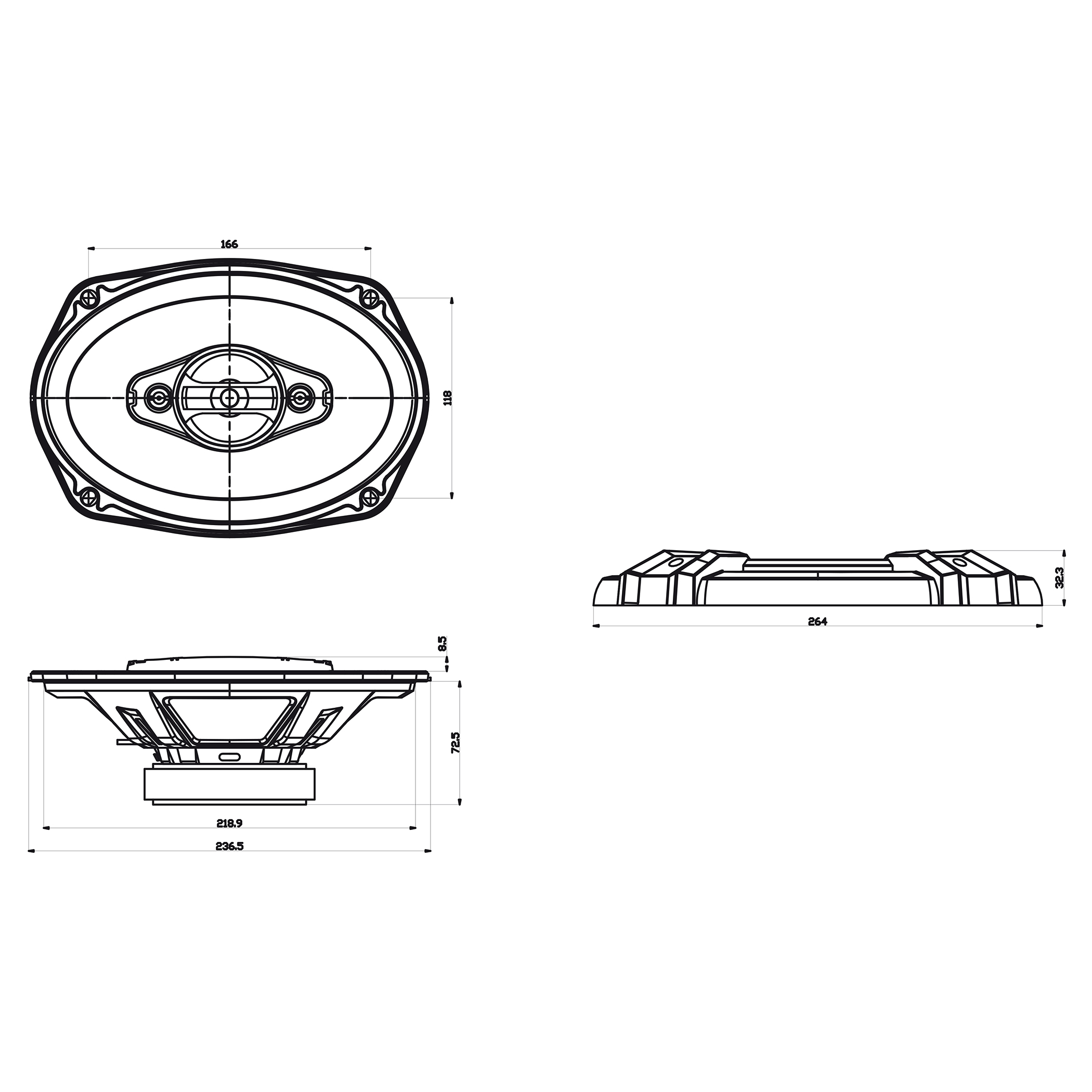

6"x 9" Oval, Dimension (165x235 mm)
4-Band Coaxial
Rubber Membrane Suspension
Coil Diameter 1.25" (30 mm) ASV
Diameter 58 mm Mid Speaker
Diameter Piezo Tweeter 2x15 mm
Frequency Range 65-20000Hz
Sensitivity 86dB/W/m
Impedance: 4Ω
Nominal Power 35W
Maximum Power 105W
Magnet Dimensions 100x60x18 mm
Mounting Depth 80 mm
Car Speakers

Technical description

Maximum power output 105
Rated power output 35 W
Type 4-Band
Minimum frequency 65 Hz
Maximum frequency 20 kHz
Sensitivity 86 dB
Impedance 4 Ohm
Speaker diameter 6 x 9" / 15 x 23 cm
Installation depth 80 mm
Colour Black
