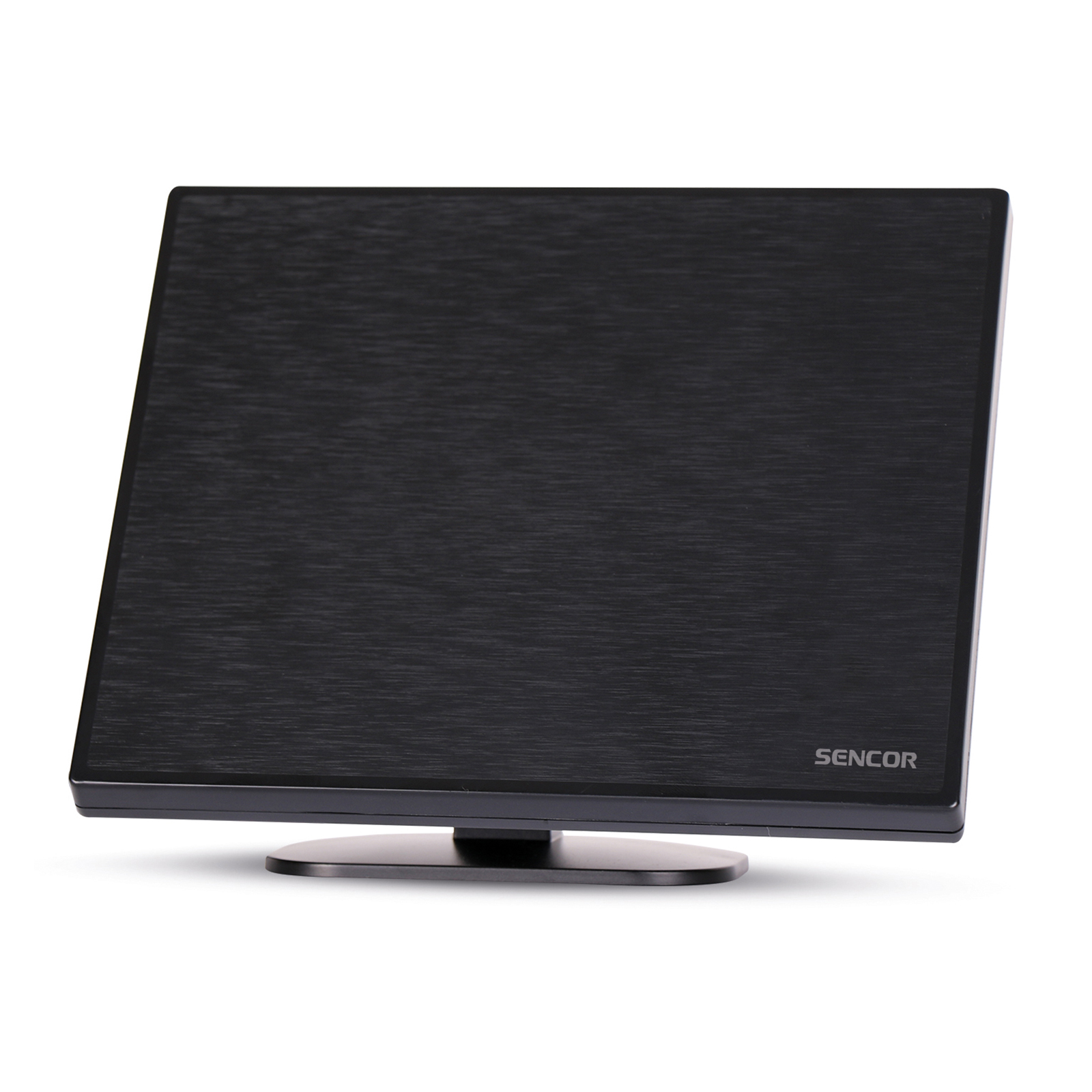

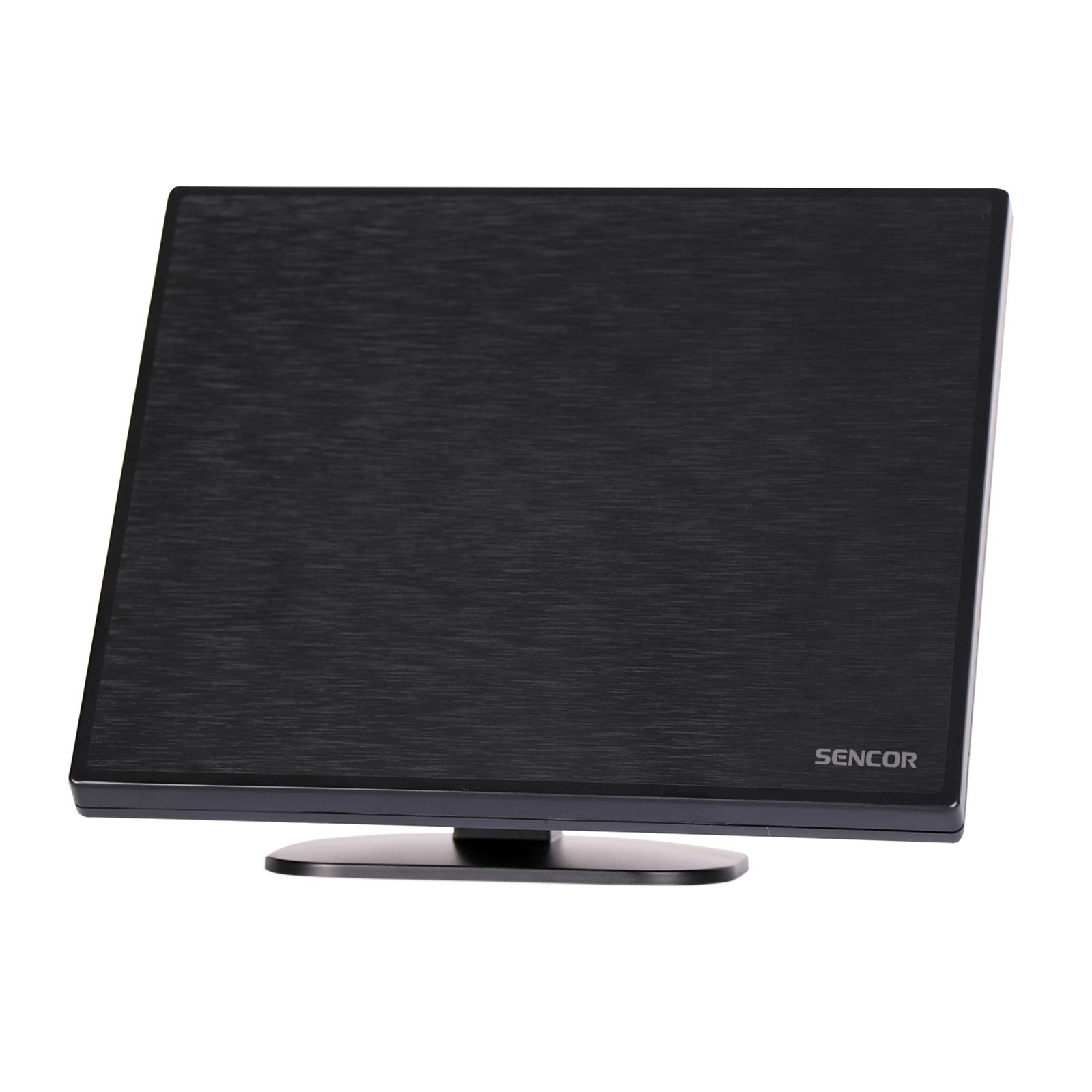

SDA 220 Digital indoor antenna

  • Built-in LTE(4G) filter
  • High sensitivity and resistance against interference
This is a special designed antenna for digital terrestrial TV broadcasting reception. This antenna is active and can be powered by external adapter or set-top box via coaxial cable. It has a built-in LTE(4G) filter. High sensitivity and resistance against interference.
Frequency Range:
VHF: 87.5 – 230 MHz; UHF: 470 – 790 MHz
Reception Channel: CH21~69
Gain: 20 Db
Front-back rate: 7 dB
Polarization: Horizontal
Connector: IEC
Range: 80 km
Indoor TV Antennas

Technical description

Version INDOOR
Frequency Bands UHF/VHF
Gain 20 dB
RF impedance 75 Ohm
Antenna cable length 1,5 m
Frequency range VHF 174-230MHZ UHF 470-790MHZ
Power 12 V
Adjustable Mechanical
LTE Filter Yes
DVB-T support YES
Polarization Omnidirectional
Colour Black


Manual /multilingual/
Declaration of Conformity
