Top-class reception of digital and analogue terrestrial broadcasting in the UHF band. Built-in LTE filter. High sensitivity and resistance against interference. Quality materials are used that are resistant to climate conditions. Simple assembly. F-connector for the cable connection with minimum loss.
Frequency Range: UHF 470~790MHz
Reception Channel: CH21~60
Gain: 10 dB ( max.)
Impedance:75Ω
Front-back rate: 25dB
Elements: 20
Polarization: Horizontal
Connector: F-connector
Range: 80 km

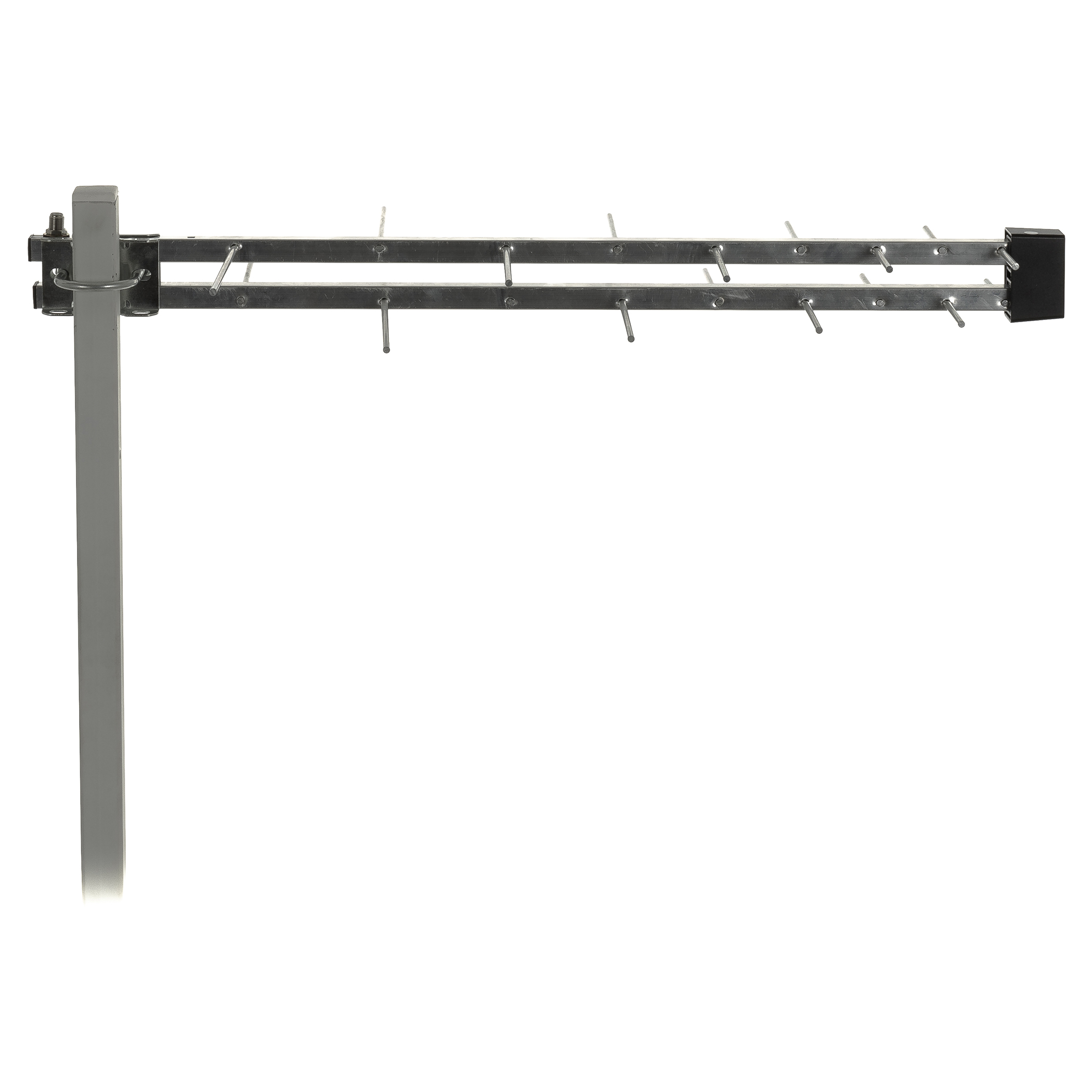

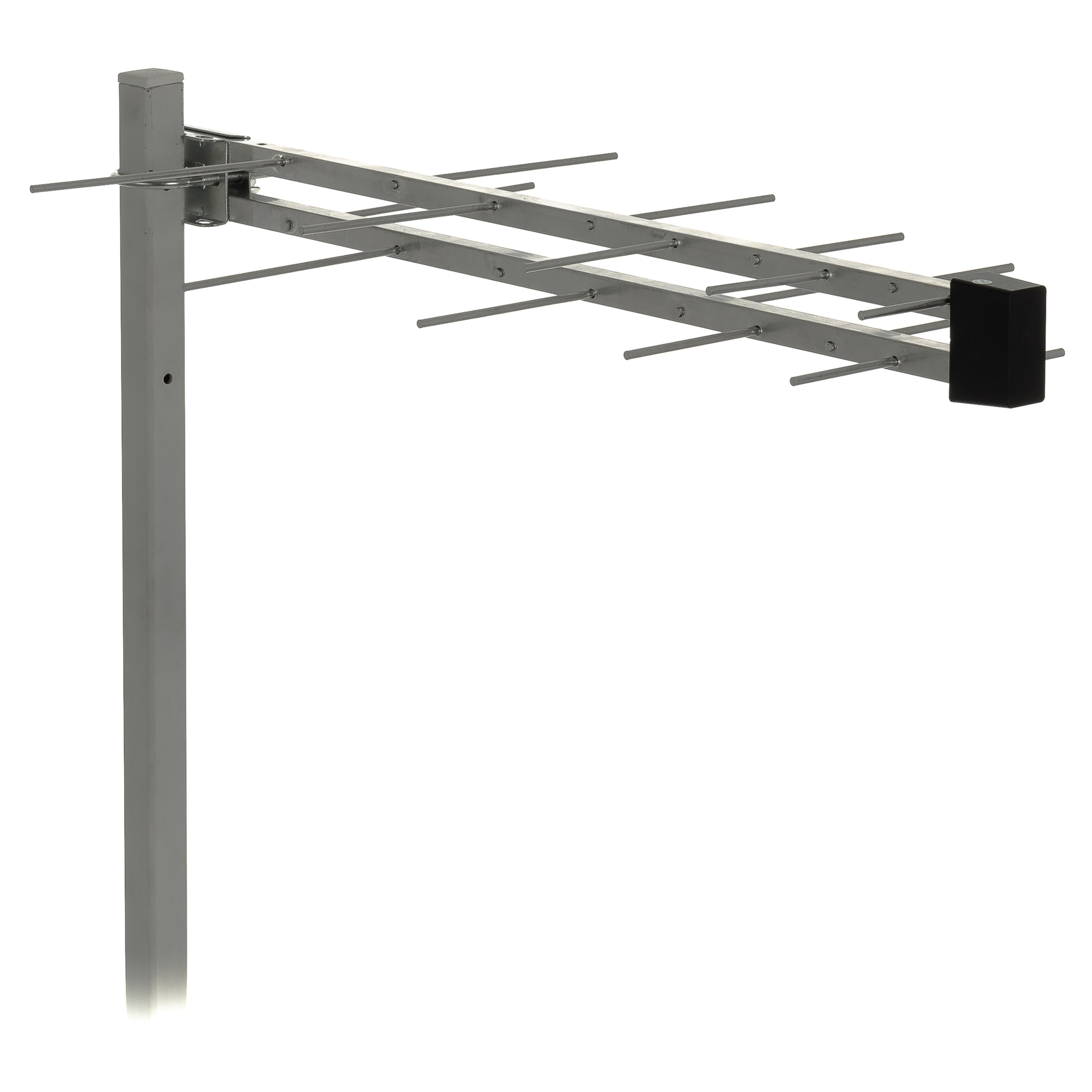

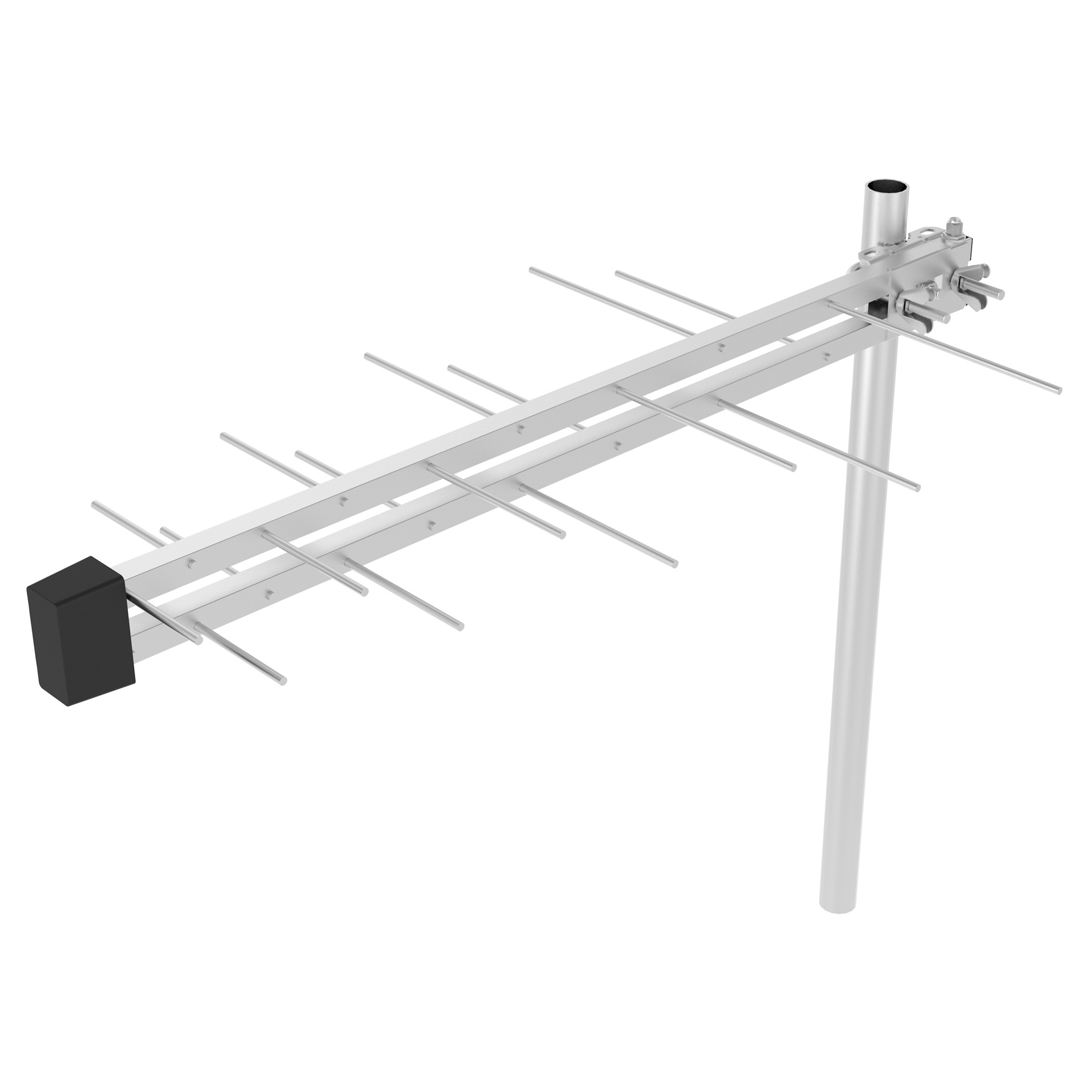

SDA 612 Passive outdoor Antenna
- Built-in LTE filter
- High sensitivity and resistance against interference
- Quality materials are used that are resistant to climate conditions
Archived product
not available
Technical description
| Version | Outdoor |
| Frequency Bands | UHF |
| Gain | 10 dB |
| RF impedance | 75 Ohm |
| Frequency range | UHF 470-790MHZ |
| Adjustable | Mechanical |
| LTE Filter | Yes |
| DVB-T support | YES |
| Polarization | Horizontal |
| Colour | Grey |
