Min. screen diagonal: 40"
Max. screen diagonal: 70"
Tilt upwards: 0°
Tilt downwards: -12°
Swivel: 0°
Level correction: +/-3°
Min. distance from a wall: 30 mm
Max. distance from a wall: 30 mm
Maximum load bearing capacity: 40 kg
Width: 638 mm
Height: 418 mm
Depth: 30 mm
Minimum span:100x100 mm
Maximum span: 600x400 mm
VESA 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
Colour: Black
Material: Steel
"Lock" against removal

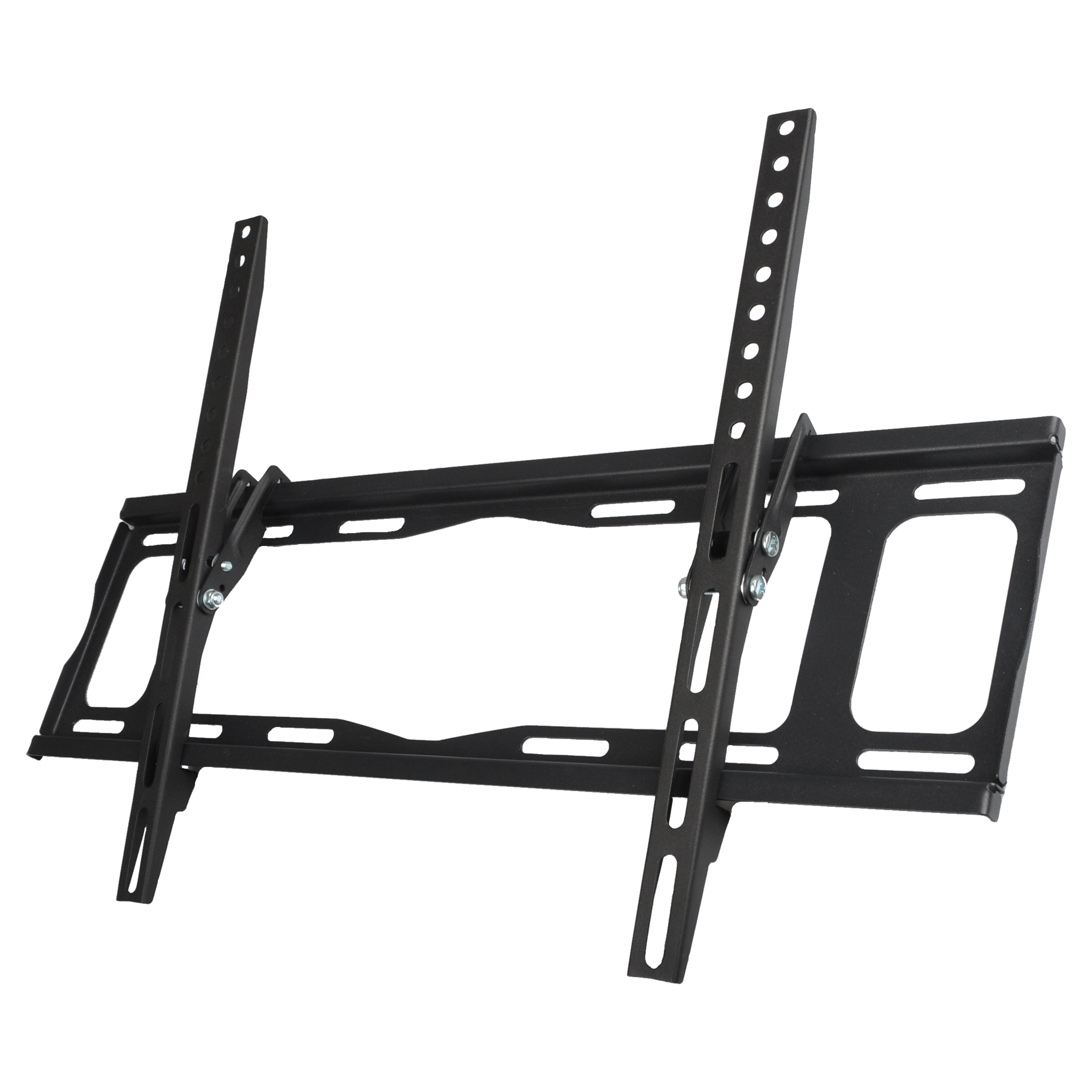

SHT B332 Adjustable mount for TV
- For TV 40“ – 70“
- Maximum load bearing capacity: 40 kg
- VESA 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
Technical description
| Determined for | TV |
| Load capacity | 40 kg |
| Min. screen diagonal | 40 " |
| Max. screen diagonal | 70 " |
| Placement | wall mount |
| Design | Positionable |
| Tilt downwards | 12 |
| Min. distance from wall | 2,5 cm |
| Minimum span | 100 X 100 MM |
| Maximum span | 600 X 400 MM |
| VESA 75x75 | Yes |
| VESA 100x100 | Yes |
| VESA 200x100 | Yes |
| VESA 200x200 | Yes |
| VESA 300x200 | Yes |
| VESA 300x300 | Yes |
| VESA 400x200 | Yes |
| VESA 400x300 | Yes |
| VESA 400x400 | Yes |
| VESA 600x200 | Yes |
| VESA 600x300 | Yes |
| VESA 600x400 | Yes |
| VESA 600x600 | No |
| Material | Steel |
| Removal prevention mechanism | |
| Height (cm) | 41,8 cm |
| Width (cm) | 60 cm |
| Depth (cm) | 2,5 cm |
| Colour | Black |
