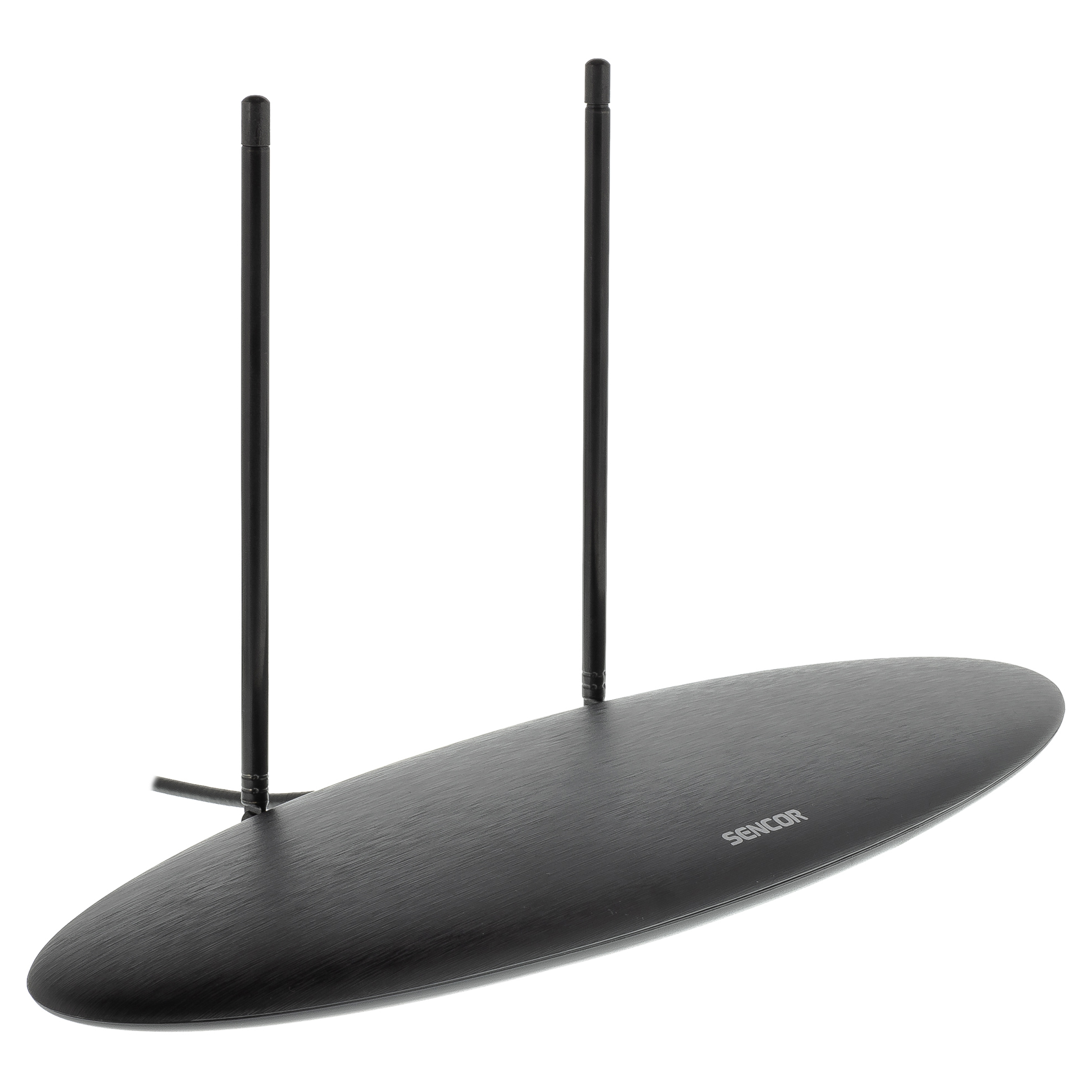

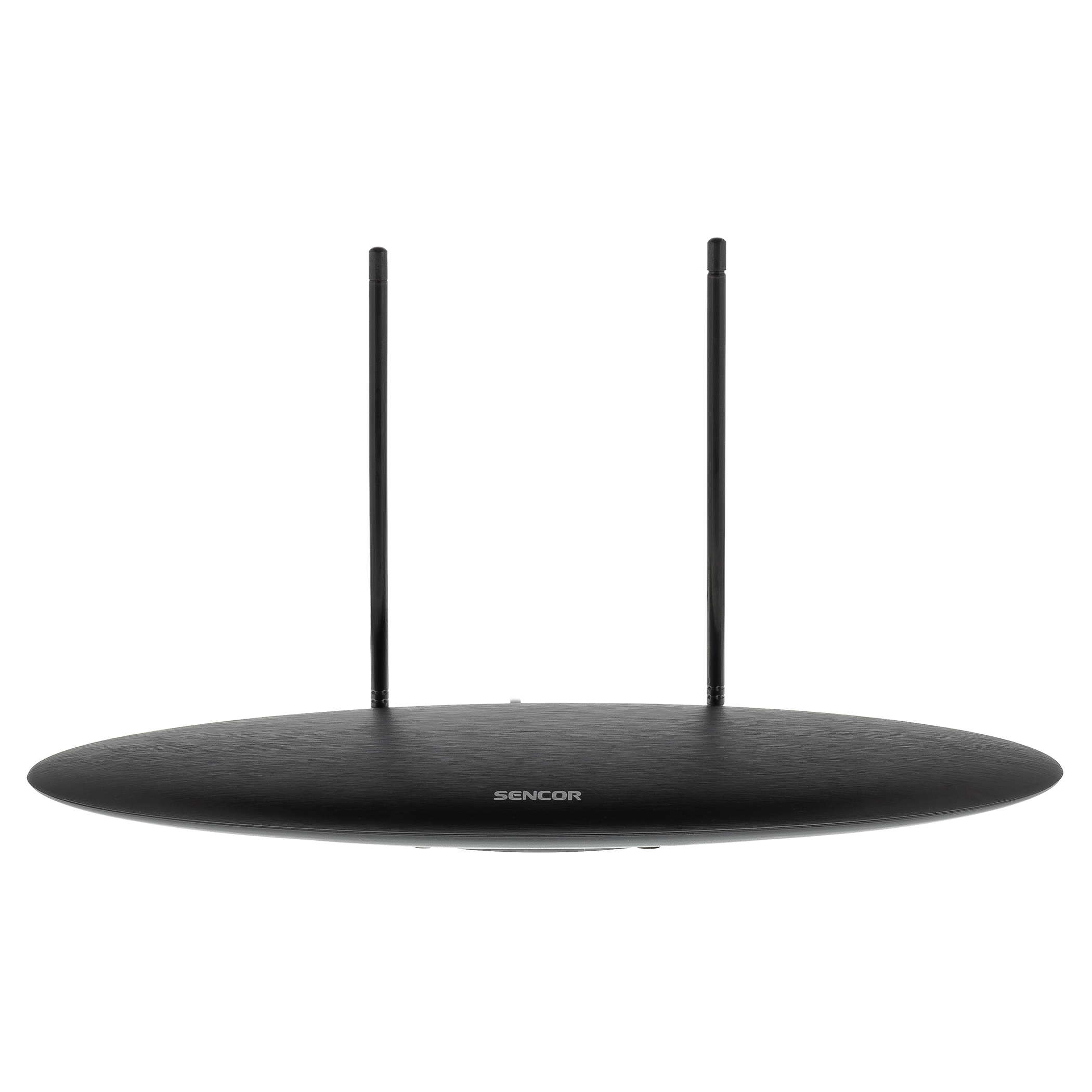

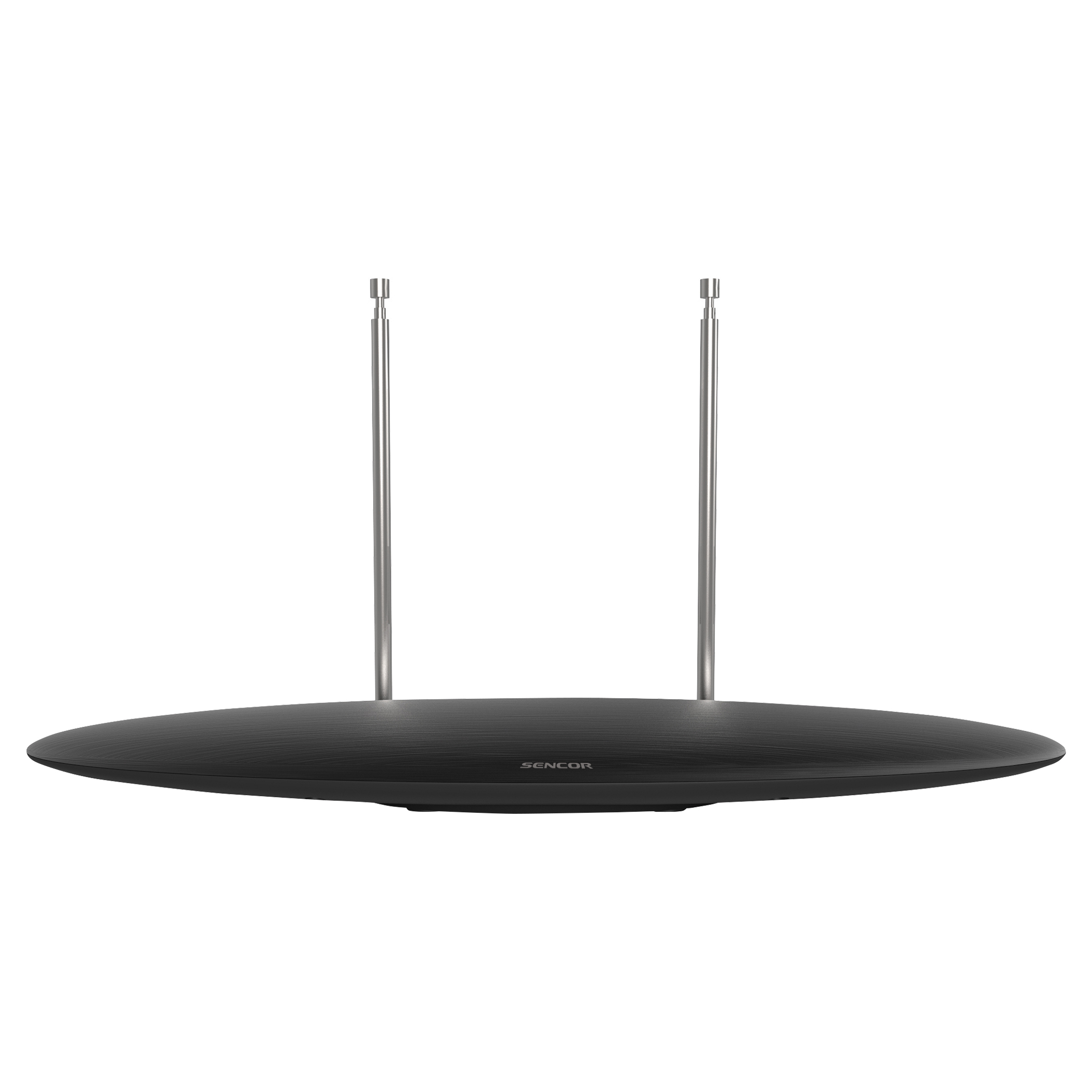

SDA 320 DVB-T/T2 Digital indoor antenna

  • It has a built-in LTE(4G) filter
  • High sensitivity and resistance against interference
This is a special designed antenna for digital terrestrial TV broadcasting reception. This antenna is active and can be powered by external adapter or set-top box via coaxial cable.
It has a built-in LTE(4G) filter.
High sensitivity and resistance against interference.
Frequency Range :
VHF: 87.5 – 230 MHz
UHF: 470 – 790 MHz
Reception Channel: CH21~69
Gain: 20 Db
Front-back rate: 6 dB
Polarization: Horizontal
Connector: IEC
Range: 80 km
Power supply: via AC/DC adapter (DC 6V/100mA) or via DTV set-top box (DC 5V/40mA)
Indoor TV Antennas

Technical description

Version INDOOR
Frequency Bands UHF/VHF
Gain 20 dB
RF impedance 75 Ohm
Antenna cable length 1,5 m
Frequency range VHF 174-230MHZ UHF 470-790MHZ
Power 6 V
Adjustable Mechanical
LTE Filter Yes
DVB-T support YES
Polarization Horizontal
Colour Black


Declaration of Conformity
