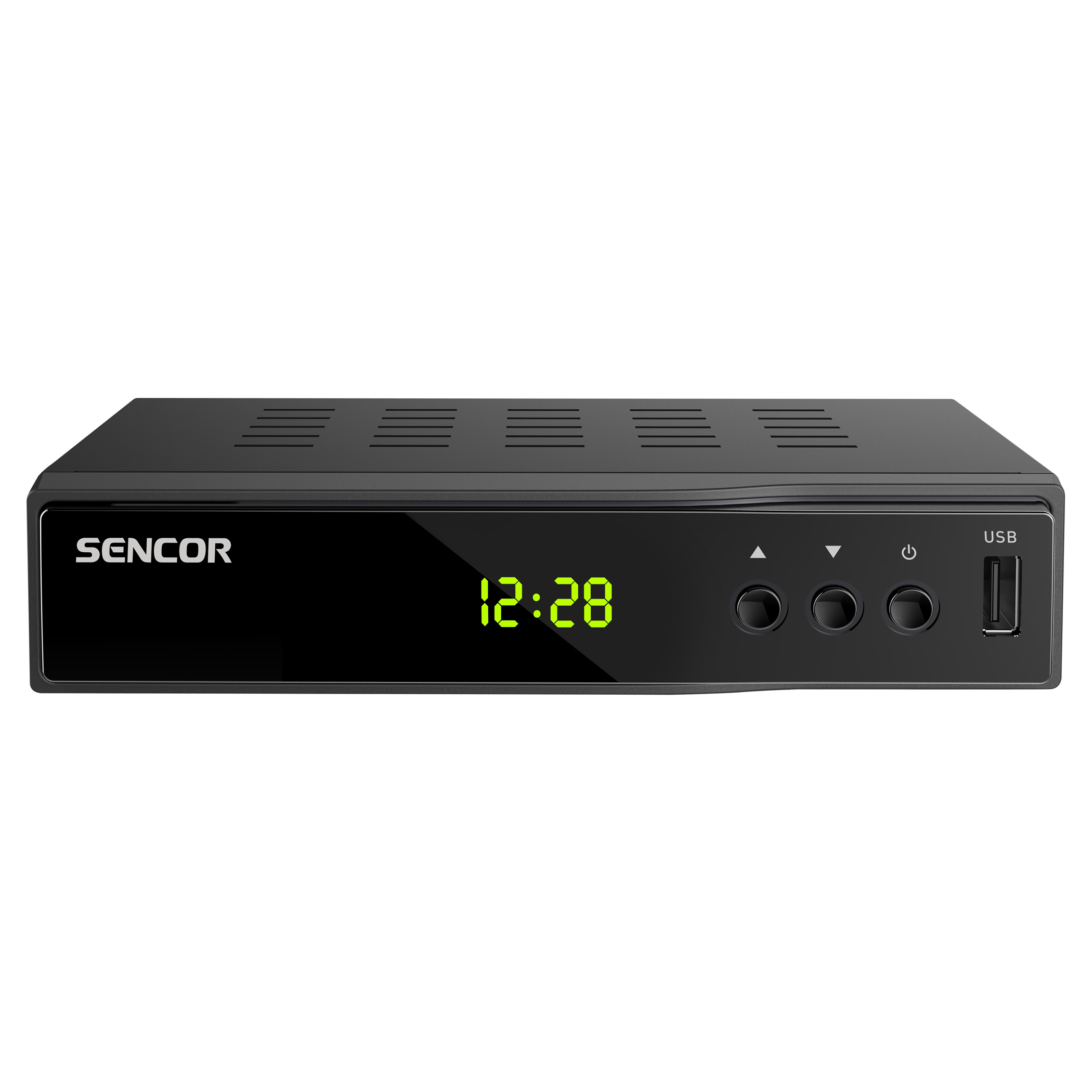

SDB 5005T is a new-generation set-top box ready for future DVB-T2 terrestrial broadcasting with H.265 codec. HDMI CEC function allows you to control connected devices via HDMI cable with one remote control. This model is equipped with an HDMI and SCART connector to connect to any of your televisions, whether it be newer or older model. You can play movies, music or photos over the USB interface. You can browse and schedule your favorite shows in the Electronic Program Guide.
Signal Reception:
DVB-T2 - HEVC/H.265 (1080P 60fps)
DVB-T - MPEG-2/MPEG-4 (H.264)
PAL/SECAM BG/DK/I/L
HDR Support

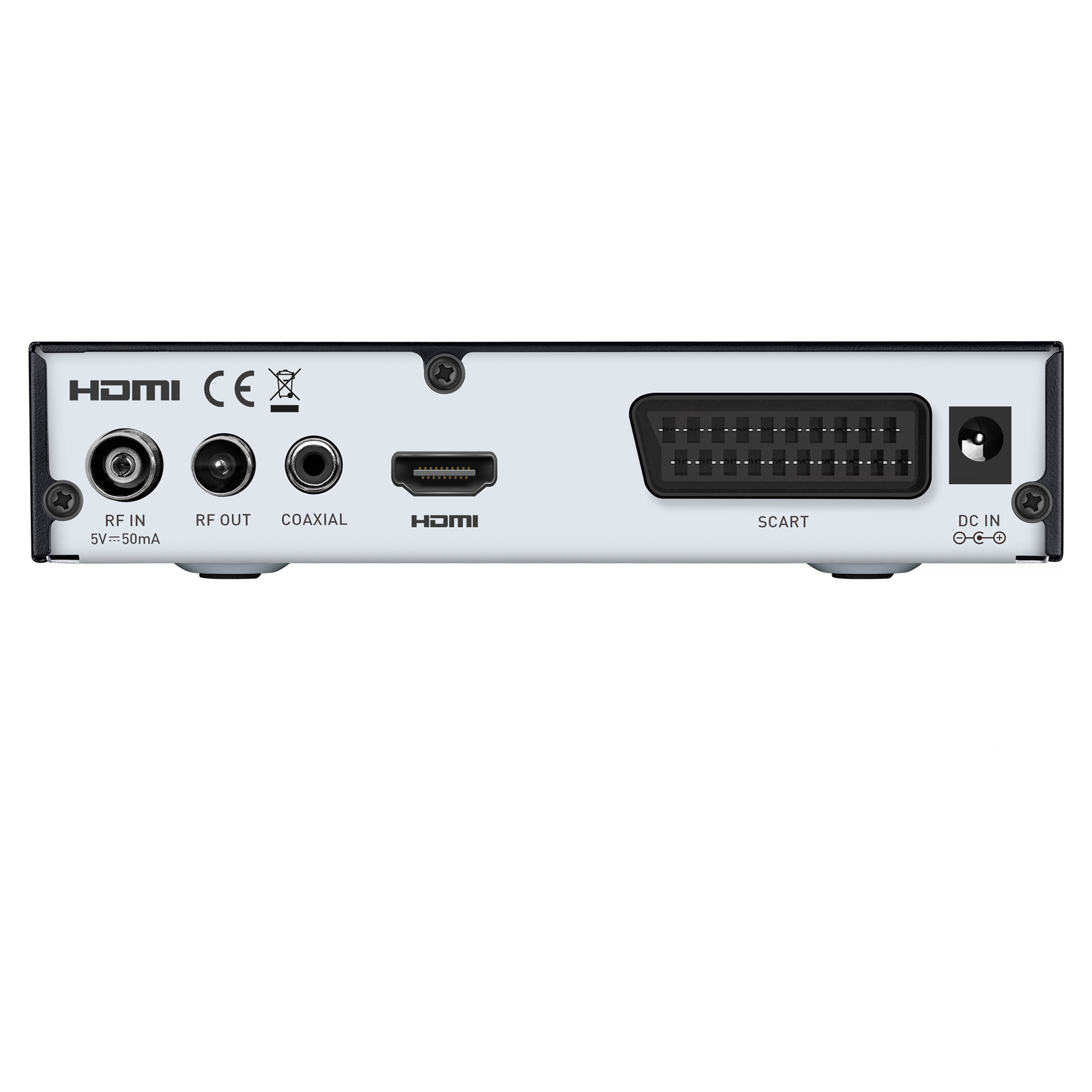

Inputs and outputs:
Antenna Power Supply 5V/50mA - RF In and Out
HDMI-CEC 1.4 Video Output (1080p)
SCART Video Output
USB Port
Coaxial
Supported USB formats:
Video: AVI, TS, TRP, MP4, MKV, MOV
Audio: MP3, FLAC
Picture:JPG, JPEG, MPG, MPEG
Other:
USB - Recording, Timeshift, Media Playback
7 Days EPG (Electronic Programme Guide)
Teletext
TV + Radio Channel List
Favorite Channel List
Parental Lock
Aspect Ratio Handling
Booking Timer (Up to 8 Events), Sleep Timer
16:9/4:3 Format Compatible
Power Supply: 220-240V~ 50/60Hz
Power Consumption: Max 7W
Stand-By Power Consumption: Max 1W
Dimension: 168 x 37 x 118mm
SDB 5006T DIGITAL TERRESTRIAL RECEIVER
- Parental Lock
- Aspect Ratio Handling
- Booking Timer (Up to 8 Events), Sleep Timer
Technical description
| DVB system | DVB-T2 HEVC |
| HDD | NO |
| Number of switch timers | 8 |
| RF modulator | YES |
| EPG | YES |
| USB | Yes |
| USB playback | Video/Photo/MP3 |
| TV recording playback on USB | YES |
| Timeshift | Yes |
| Number of SCART ports | 1 |
| Number of HDMI ports | 1 |
| Height (cm) | 3,7 cm |
| Width (cm) | 16,8 cm |
| Depth (cm) | 11,8 cm |
