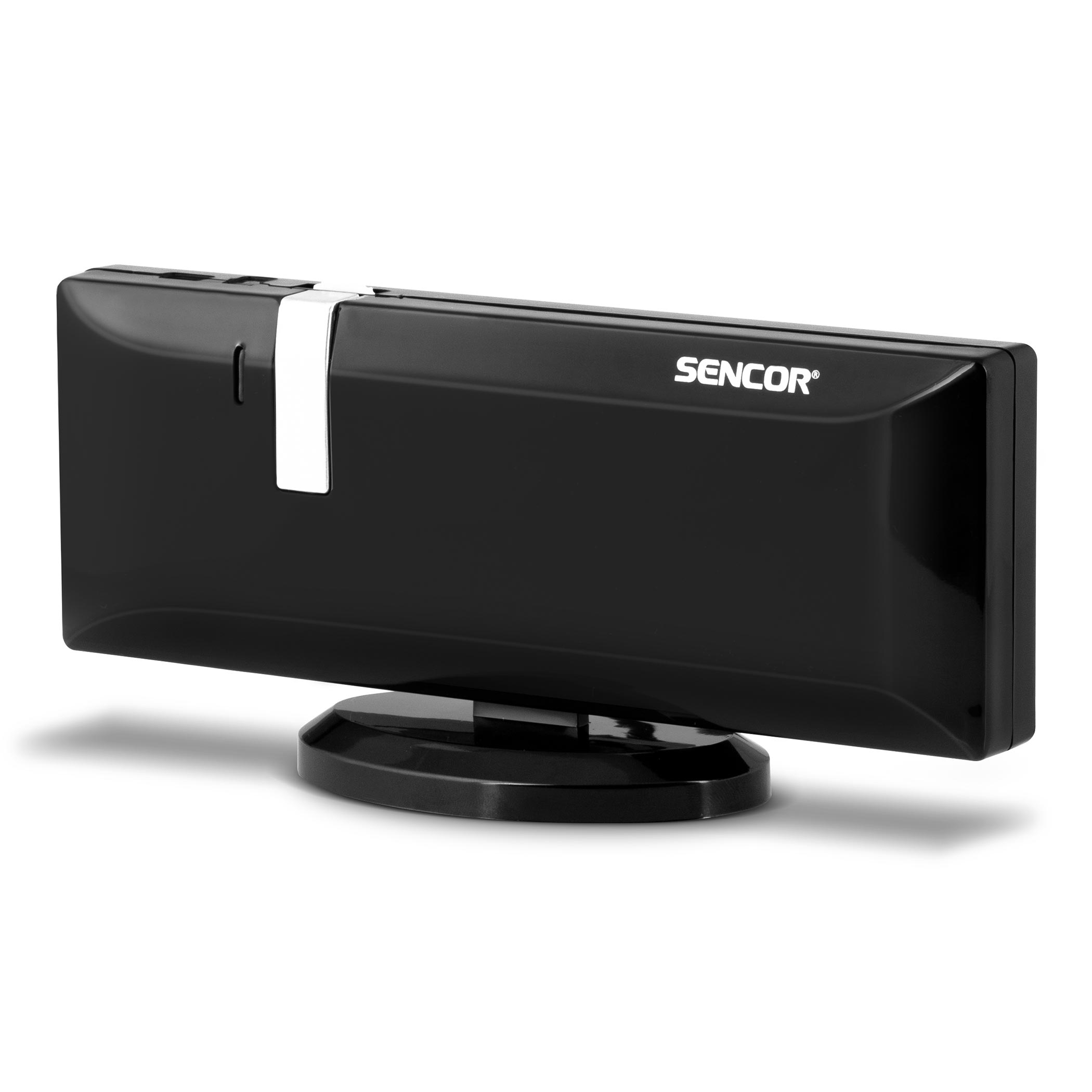

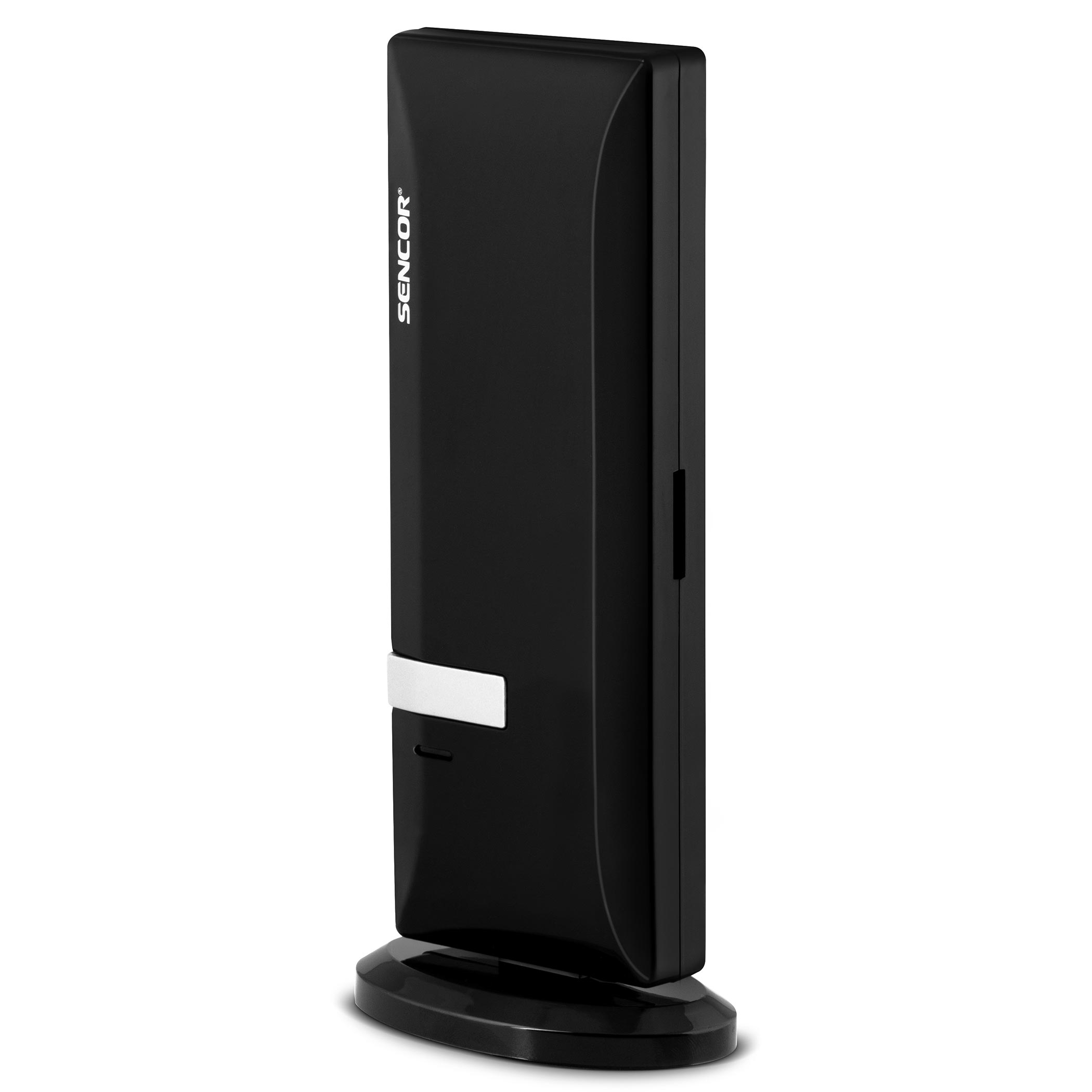

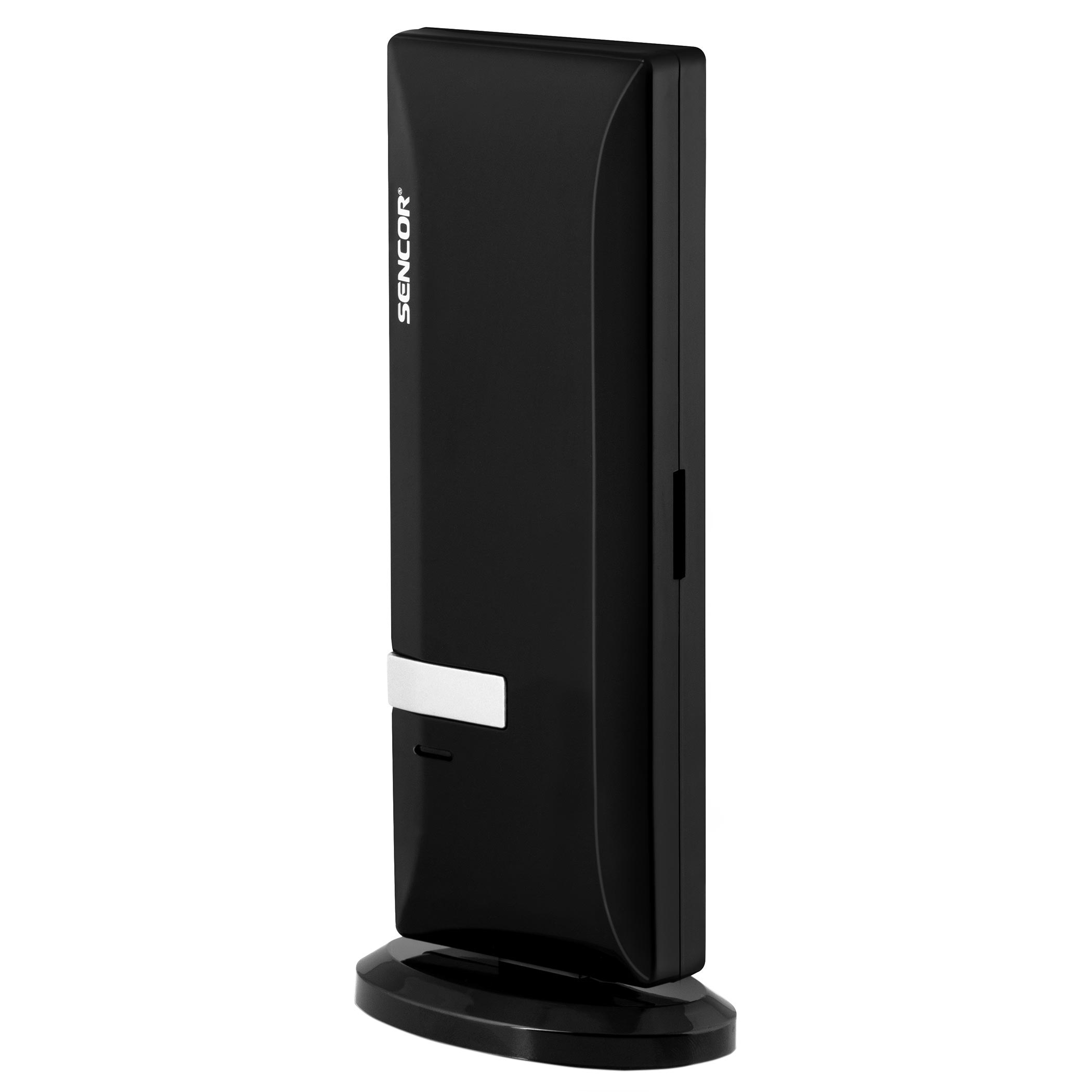

SDA 212 Mini DVB-T2 Antenna

  • Built-in LTE (4G) filter
  • High sensitivity and resistance to interference
  • Gain: 20 dB
0.00 €
Where to buy
Mini antenna is specially designed to receive digital terrestrial broadcasts. This is an active antenna that can be powered via the Micro USB cable included in the package or directly via the Set-top box using a coaxial cable.
It has a built-in LTE (4G) filter
High sensitivity and resistance to interference
Frequency range: VHF: 174 - 230 MHz; UHF: 470 - 790 MHz
Channels: 21-60
Gain: 20 dB
Impedance: 75 Ohm
Polarization: Horizontal
Connector: IEC connector
Range: 15 km
Power supply: via micro USB cable DC 5V / 40mA or Set-top box (DC 5V / 40mA)
Indoor TV Antennas

Technical description

Version INDOOR
Frequency Bands UHF, VHF
Gain 20 dB
RF impedance 75 Ohm
Antenna cable length 1,2 m
Power 5 V
Frequency range VHF 174-230MHZ UHF 470-790MHZ
LTE Filter
Adjustable Mechanical
DVB-T support
Polarization Všesměrová
Colour Black
