TV mounts

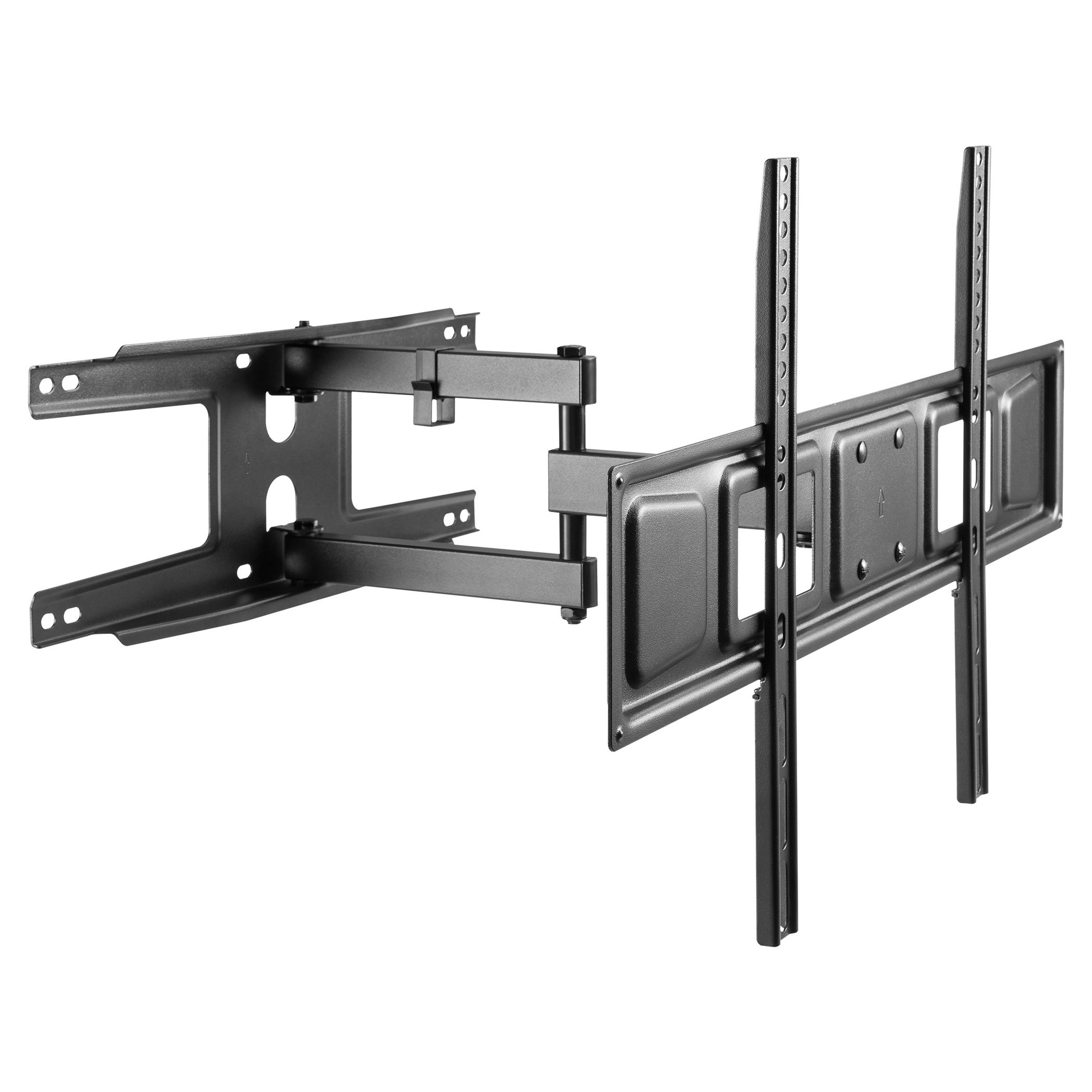

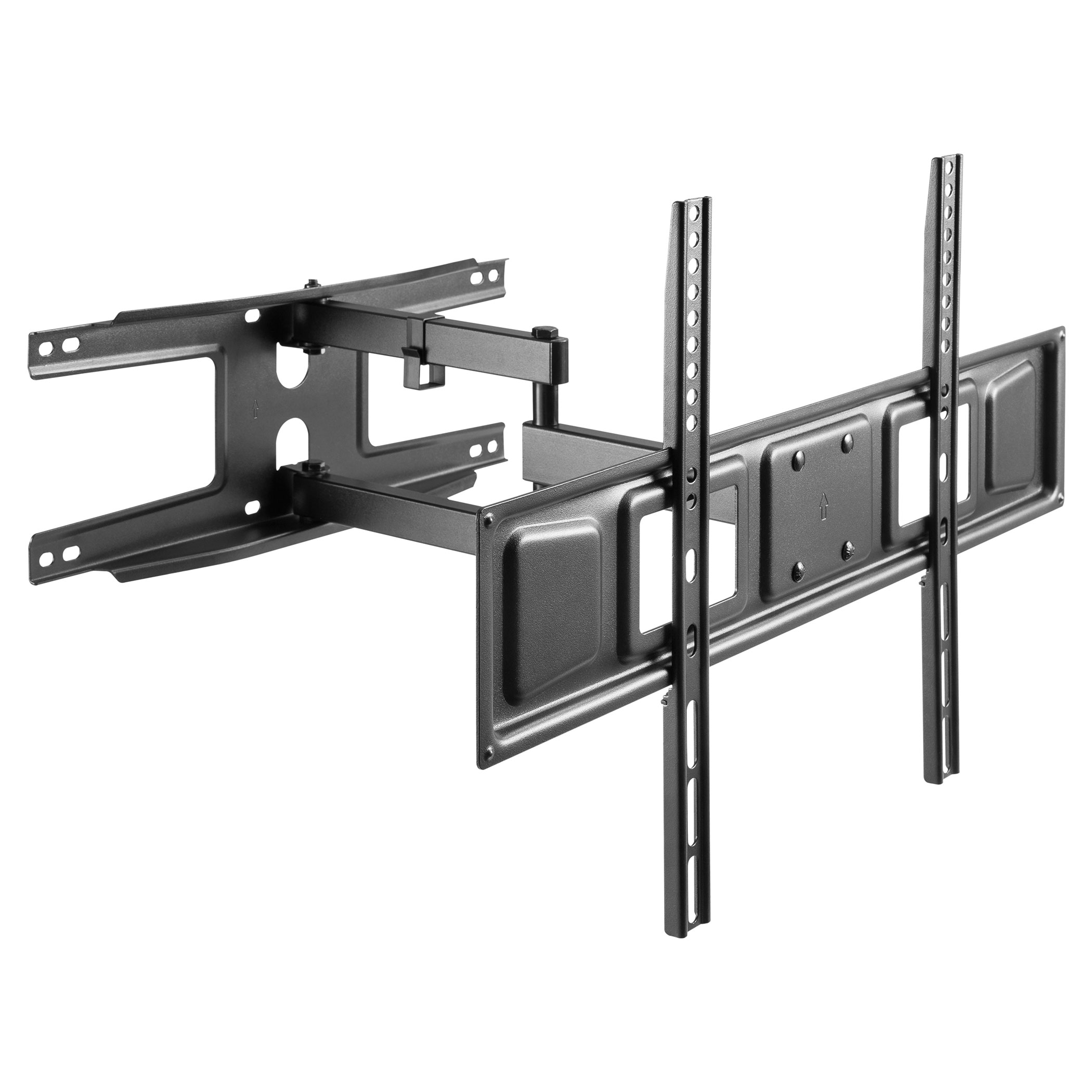

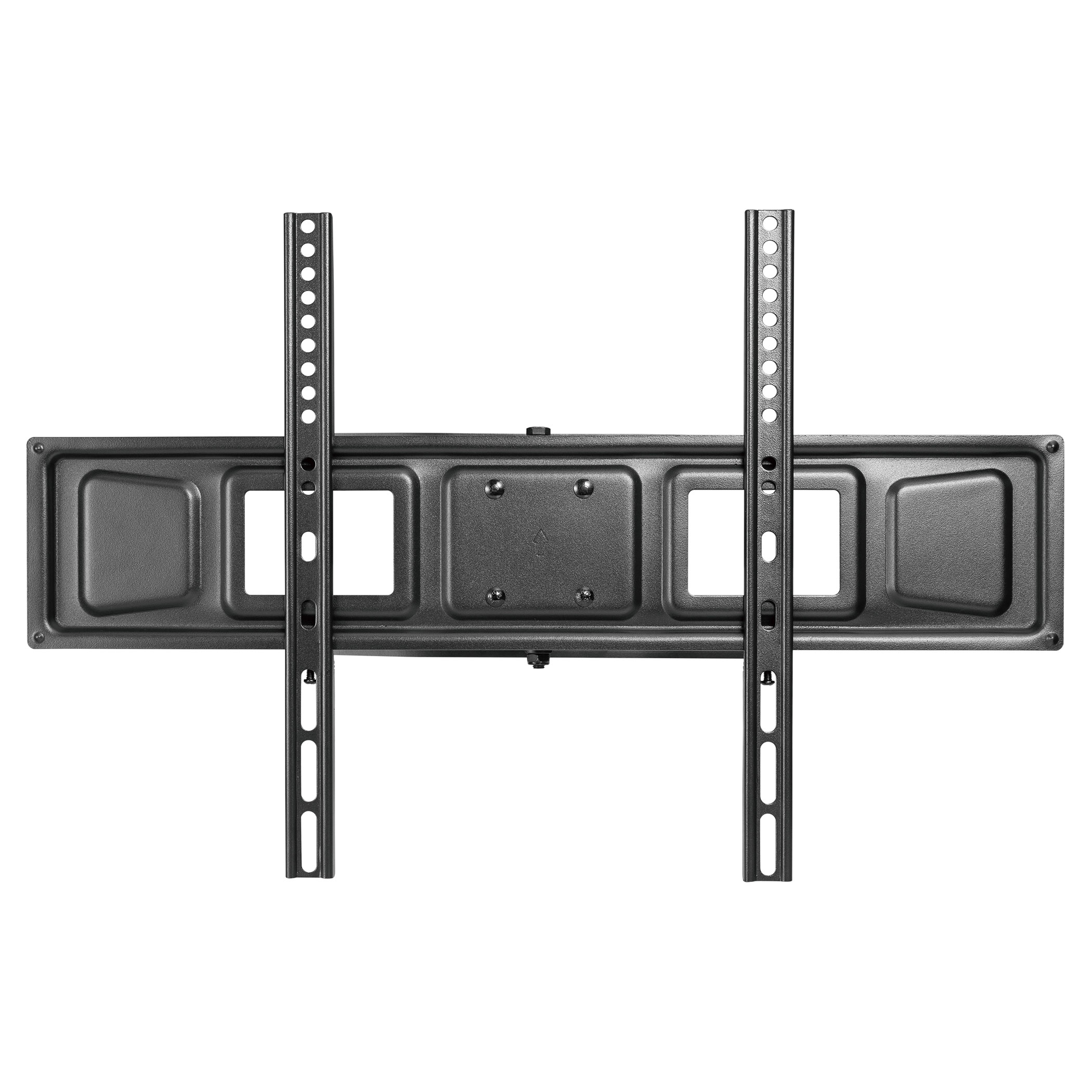

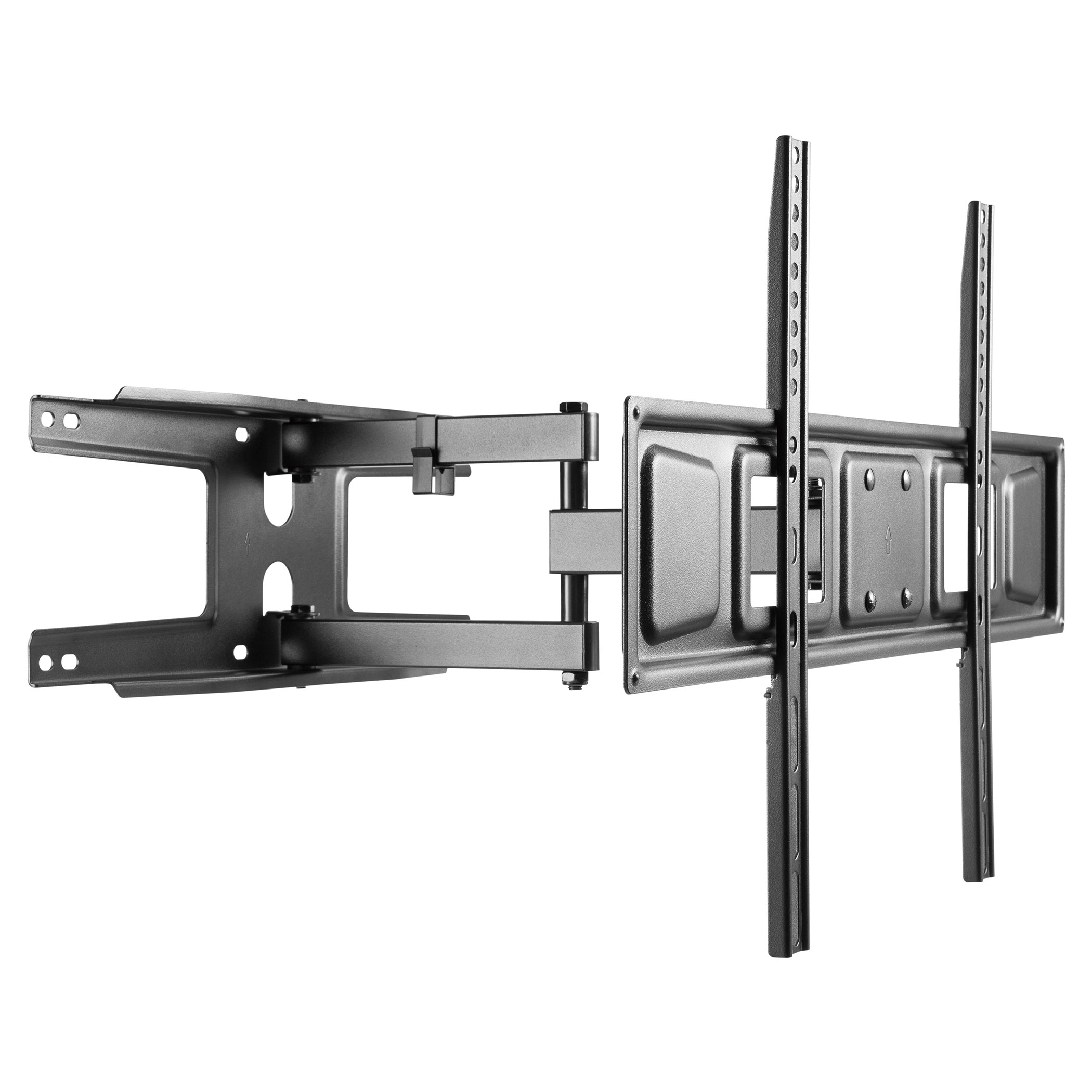

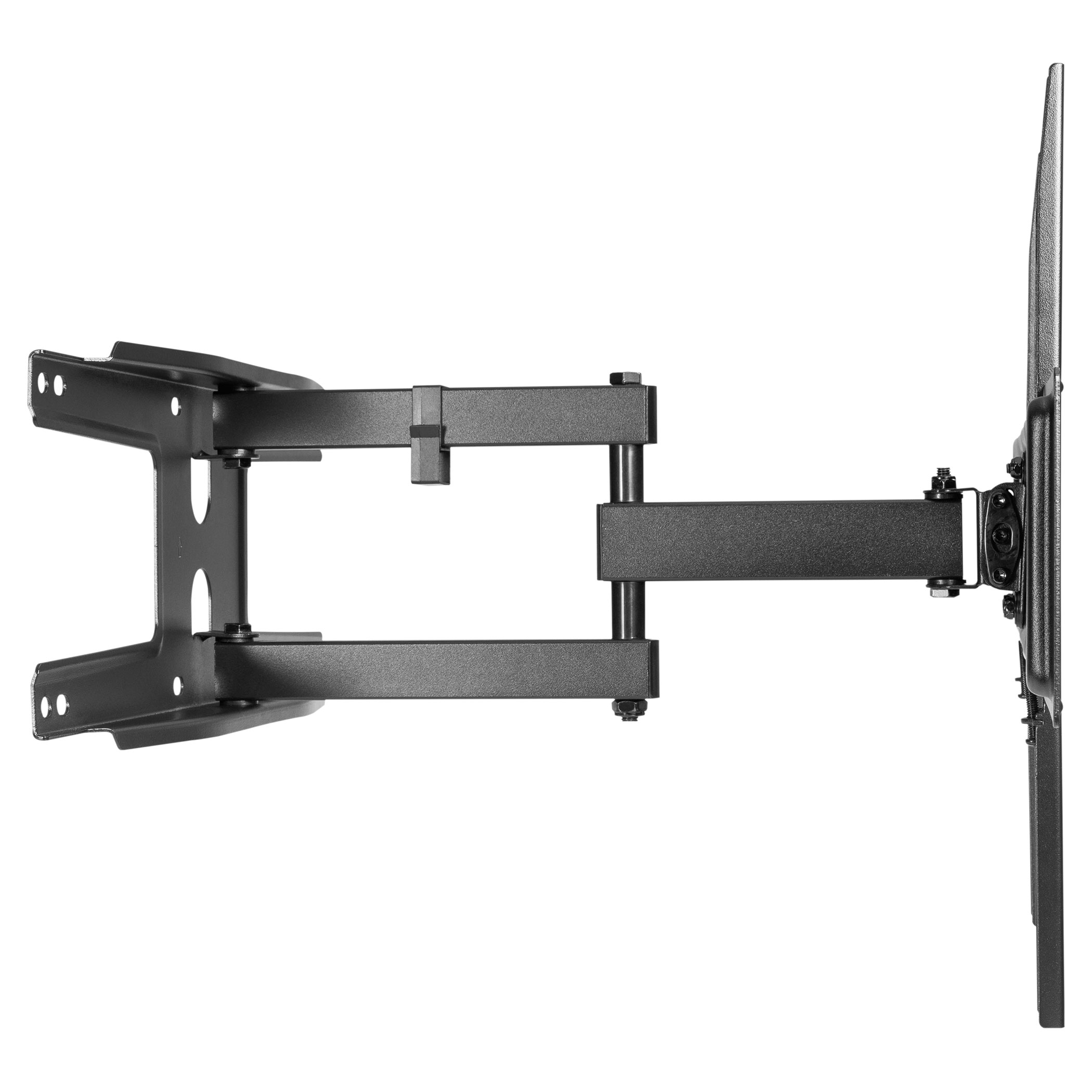

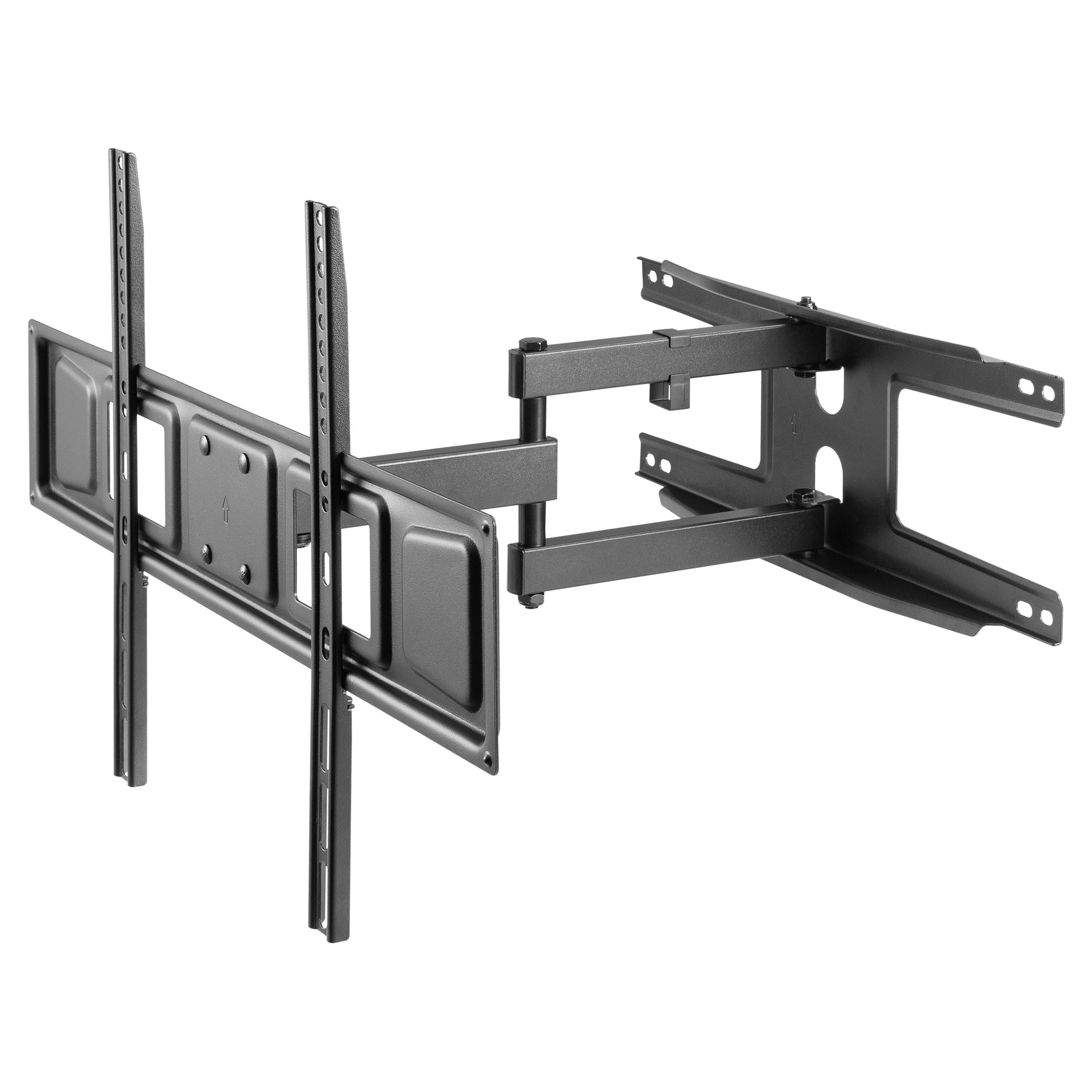

SHT B363 Extensible adjustable mount for TV

  • For television 37" - 70"
  • Max. loading 35 kg
  • VESA 75x75 - 600x400
38.90 €
Where to buy
Min. screen size: 37"
Max. screen size: 70"

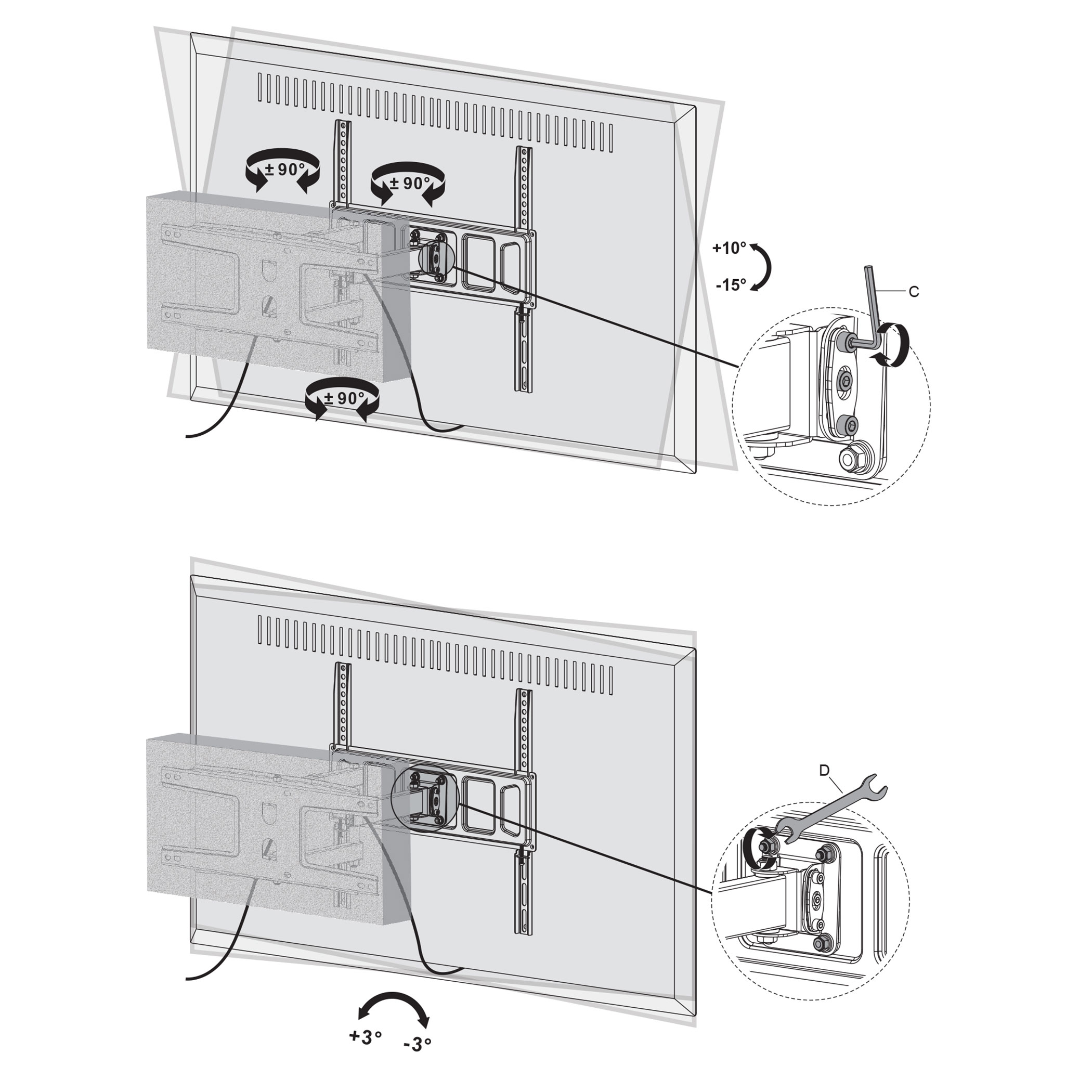

Tilt up: +10°
Tilt down: -15°
Turn: +/-90°
Rotation: +/-3°

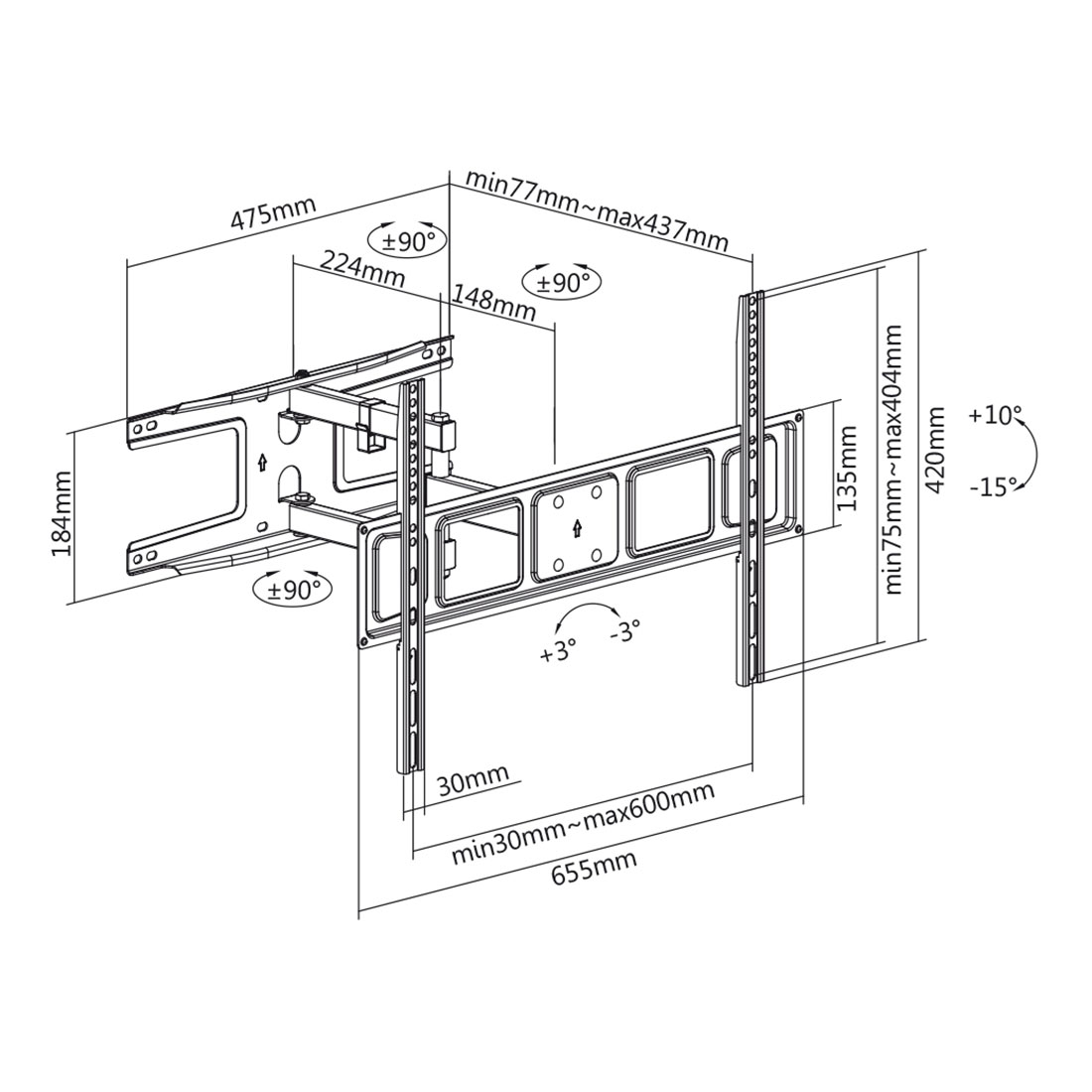

Min. distance from the wall: 7.7 cm
Max. distance from the wall:  43.7 cm
Max. loading: 35 kg
Width: 655 mm
Height: 420 mm
Depth: 77 mm
Min. spacing: 30x75 mm
Max. spacing: 600x404 mm
VESA 75x75
VESA 100x100
VESA 100x150
VESA 100x200
VESA 150x100
VESA 150x150
VESA 200x100
VESA 200x200
VESA 300x200
VESA 300x300
VESA 400x200
VESA 400x300
VESA 400x400
VESA 600x400
Color: Black
Material: Steel
"Lock" against unhinge
TV mounts

Technical description

Determined for TV
TV mount ZÁVĚSNÝ
Min. screen diagonal 37 "
Max. screen diagonal 70 "
Placement wall mount
Design VÝSUVNÝ
Tilt downwards 15
Swivel +/- 90°
Min. distance from wall 7,7 cm
Max. distance from wall 43,7 cm
VESA 75x75 Yes
VESA 100x100 Yes
VESA 200x100 Yes
VESA 200x200 Yes
VESA 300x200 Yes
VESA 300x300 Yes
VESA 400x200 Yes
VESA 400x300 Yes
VESA 400x400 Yes
VESA 600x200 Yes
VESA 600x300 Yes
VESA 600x400 Yes
VESA 600x600 No
VESA 800X400 No
Material Steel
Spirit level
Removal prevention mechanism
Height 42 cm
Width 65,5 cm
Depth 7,7 cm
Colour Black
