SDB 524T DIGITAL TERRESTRIAL RECEIVER

  • Power Consumption: Max 10W
  • Stand-By Power Consumption: Max 0,5W
  • Dimension: 120 x 30 x 86mm

DIGITAL TERRESTRIAL RECEIVER

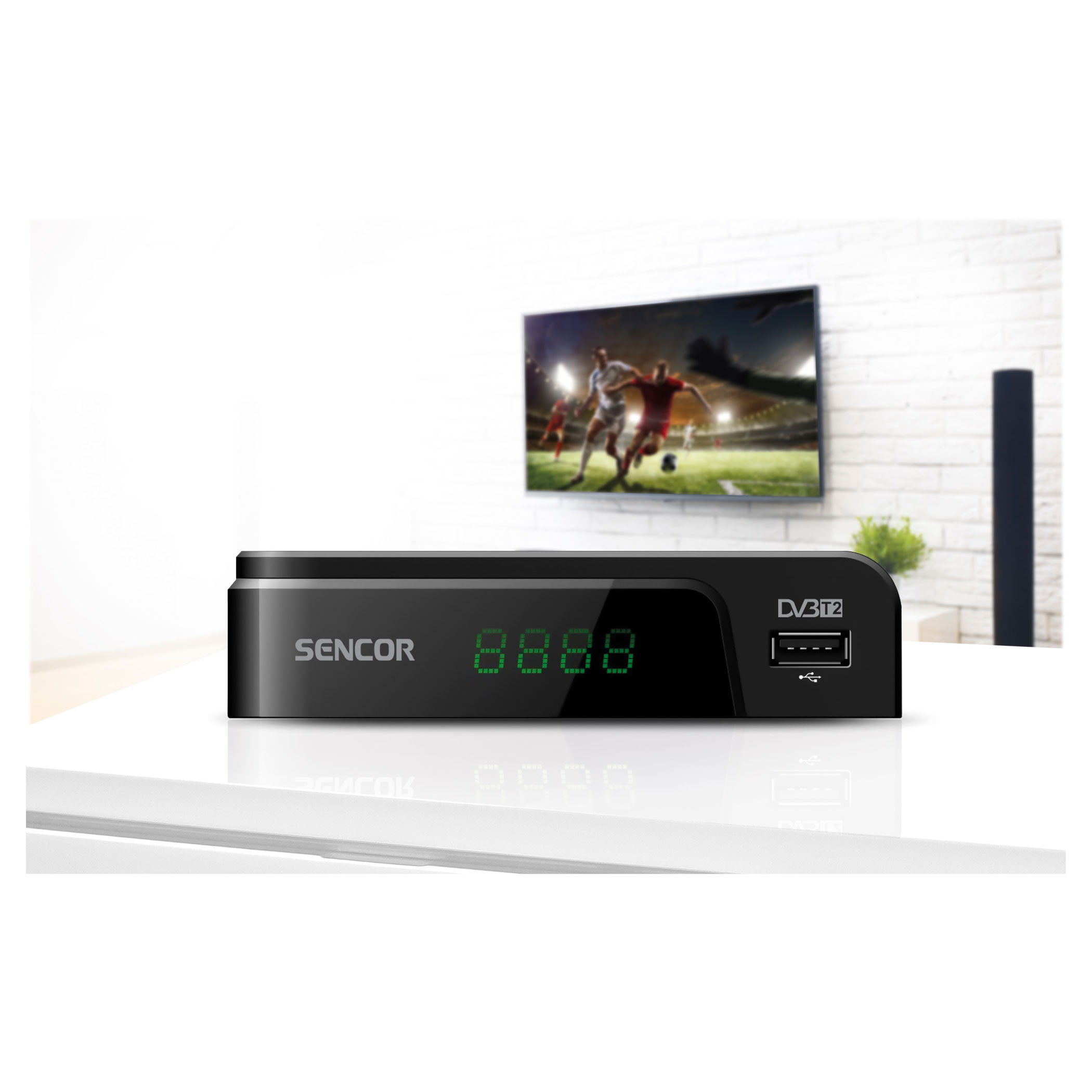

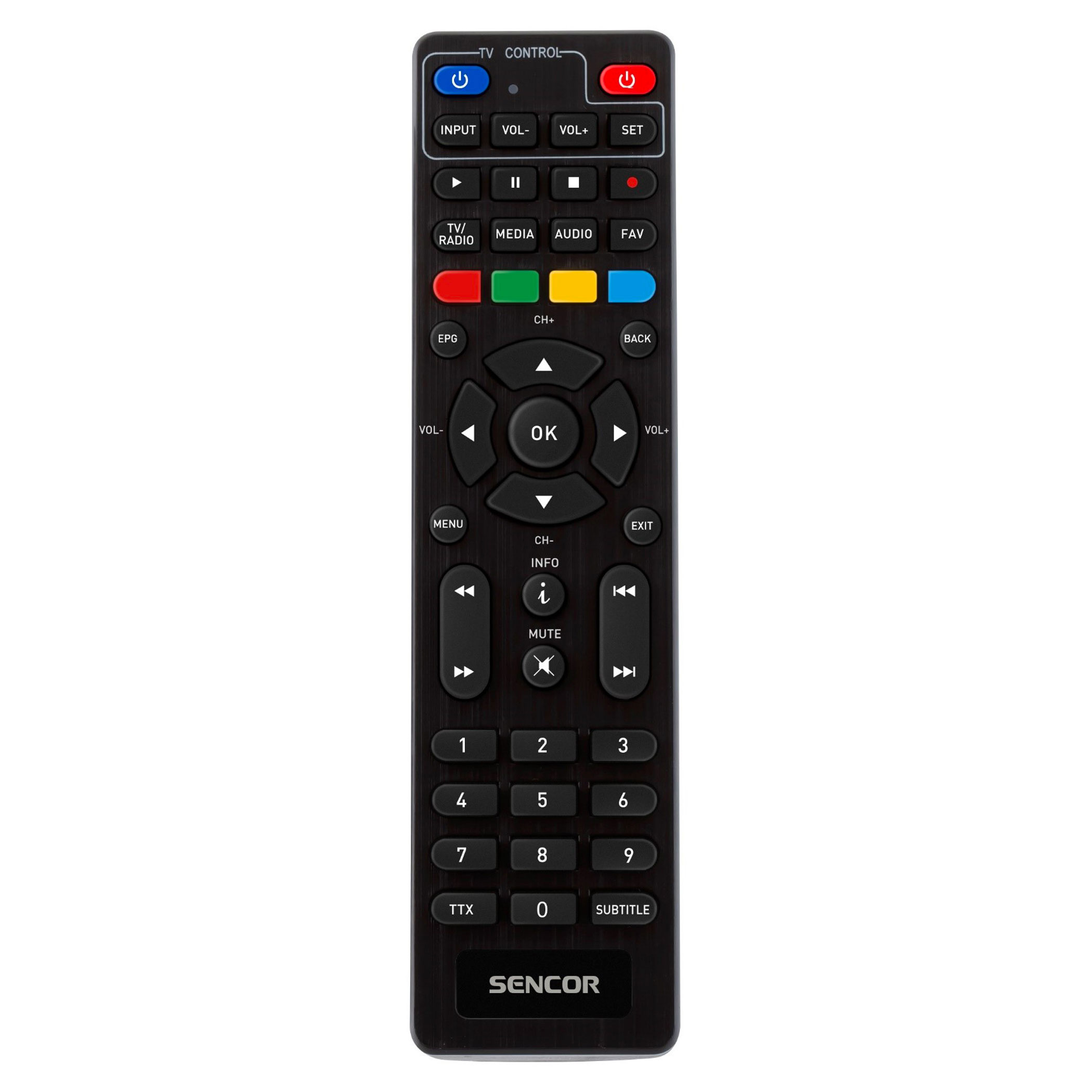

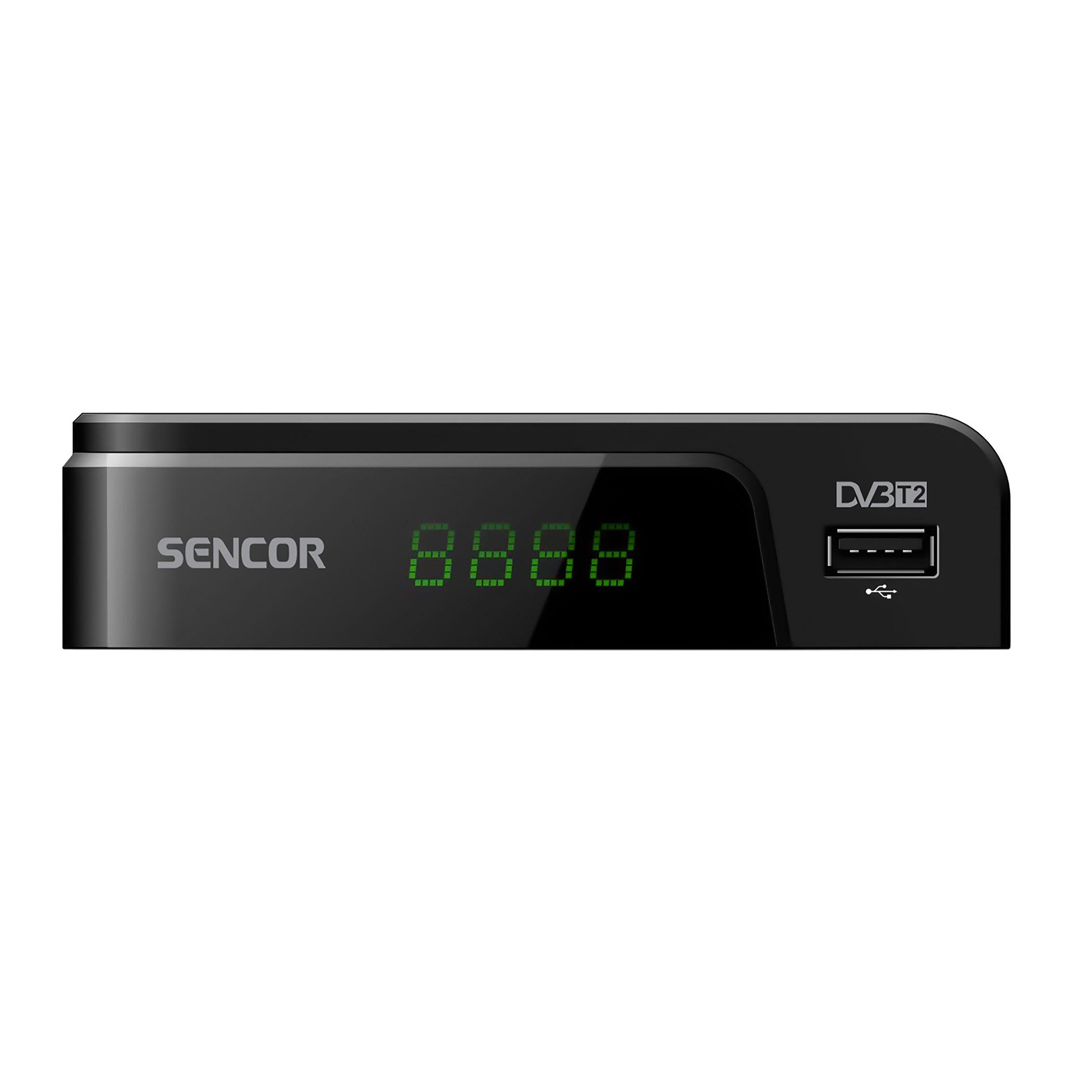

SDB 524T is a new-generation set-top box ready for DVB-T2 terrestrial broadcasting with H.265 codec.  HDMI CEC function allows you to control connected devices via HDMI cable with one remote control. This model is equipped with an HDMI and SCART connector to connect to any of your televisions, whether it be newer or older model. You can play movies, music or photos over the USB interface. You can browse and schedule your favorite shows in the Electronic Program Guide.

Signal Reception:

DVB-T2 - HEVC/H.265 (1080P 60fps)
DVB-T - MPEG-2/MPEG-4 (H.264)
PAL/SECAM BG/DK/I/L
HDR Support

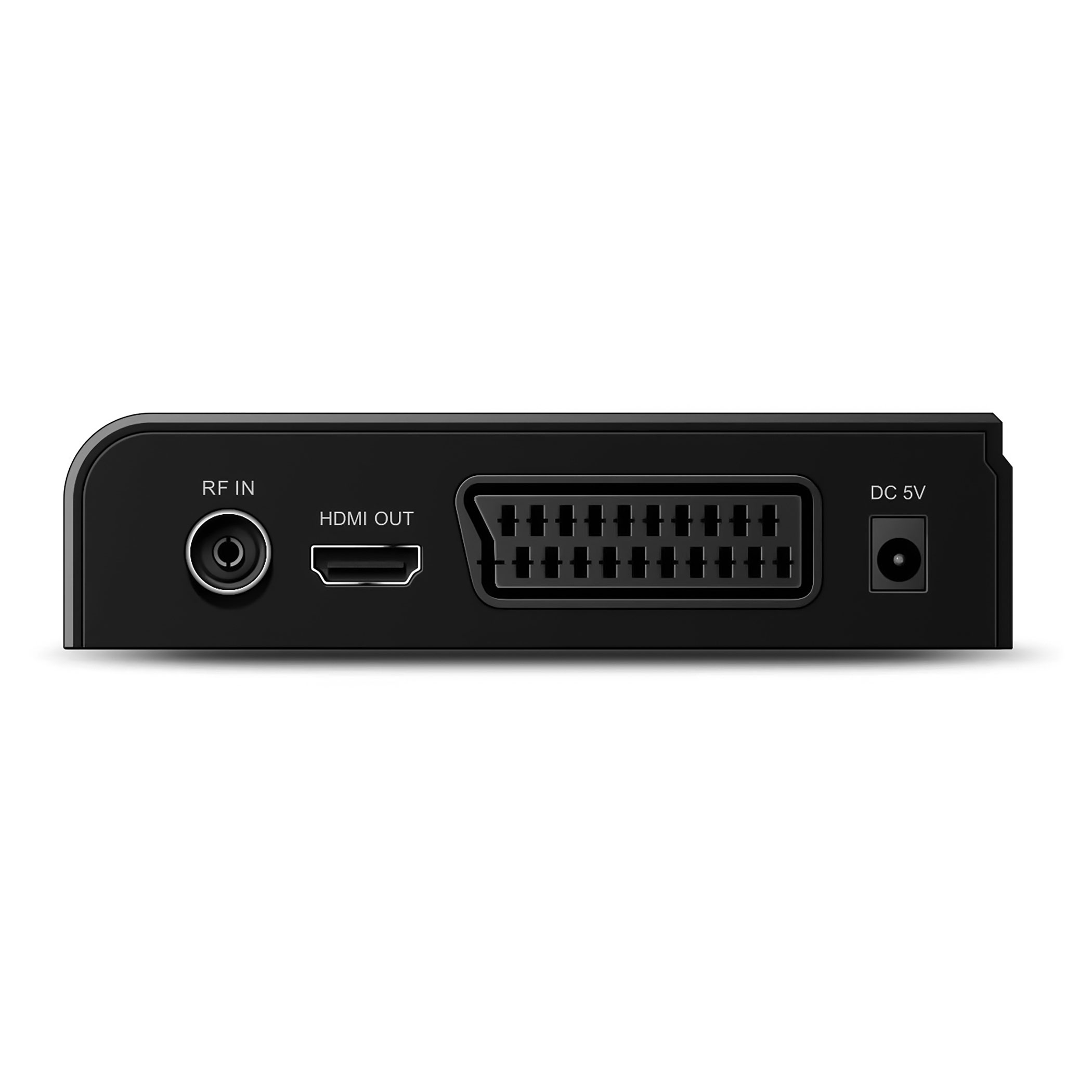

Inputs and outputs:

Antenna Power Supply 5V/50mA - RF In
HDMI® Video Output (1080p) - CEC Support
SCART Video Output
USB Port
Supported USB formats:
Video: AVI, TS, TRP, MP4, MKV, MOV
Audio: MP3
Picture:JPG, JPEG

Other:

USB - Recording, Timeshift, Media Playback
7 Days EPG (Electronic Programme Guide)
Teletext
TV + Radio Channel List
Favorite Channel List
Parental Lock
Aspect Ratio Handling
Booking Timer (Up to 8 Events), Sleep Timer
16:9/4:3 Format Compatible
Power Supply: DC IN, 5V/2A
Power Consumption: Max 10W
Stand-By Power Consumption: Max 0,5W
Dimension: 120 x 30 x 86mm
DVB-T Receivers

Technical description

DVB system DVB-T2 HEVC
EPG YES
USB Yes
USB playback Video/Photo/MP3
Timeshift Yes
Height (cm) 3 cm
Width (cm) 12 cm
Depth (cm) 8,6 cm
Colour Black
