Internal Wireless Sensor CO2 Concentration
Carbon dioxide (CO₂) is a colourless, odourless gas that naturally occurs in the Earth's atmosphere. It is produced through respiration in living organisms, the combustion of fossil fuels, and the decomposition of organic matter. It is most commonly measured in parts per million (ppm).
The normal concentration of CO2 in outdoor air is approximately 400 to 420 ppm. However, such levels are rarely achieved indoors, making it essential to monitor CO2 levels in enclosed spaces.
When CO₂ levels in the air increase, individuals may experience various physical and mental symptoms, which intensify as the concentration rises.
What is the recommended CO2 concentration indoors? A value of 400–1,000 ppm is the recommended indoor CO2 level.
Above this level, one may experience fatigue, drowsiness and reduced concentration. At levels above 2,000 ppm, headaches, palpitations, confusion or dizziness may occur. (Very high concentrations of CO2 (15,000–40,000 ppm) are critical and lead to loss of consciousness and death.)
How to maintain fresh indoor air and low CO₂ levels?
Ventilate regularly. The best method is short, intensive ventilation. Ideally for 5–10 minutes every 3–4 hours. Open windows fully to allow for rapid air exchange. If possible, create a draught by opening multiple windows.
Avoid overheating. Excessive indoor temperatures (above 24 °C) increase oxygen consumption and consequently elevate CO₂ levels. 18–22 °C is ideal – you will feel better and the air will stay fresh.
Use an extractor fan and ventilation systems. Cooking, showering, and using gas appliances generate CO₂ and humidity. Extractor hoods and ventilation systems can help to get the air out quickly.
CO2 Measurement - Powered by Swiss SENSIRION Sensor

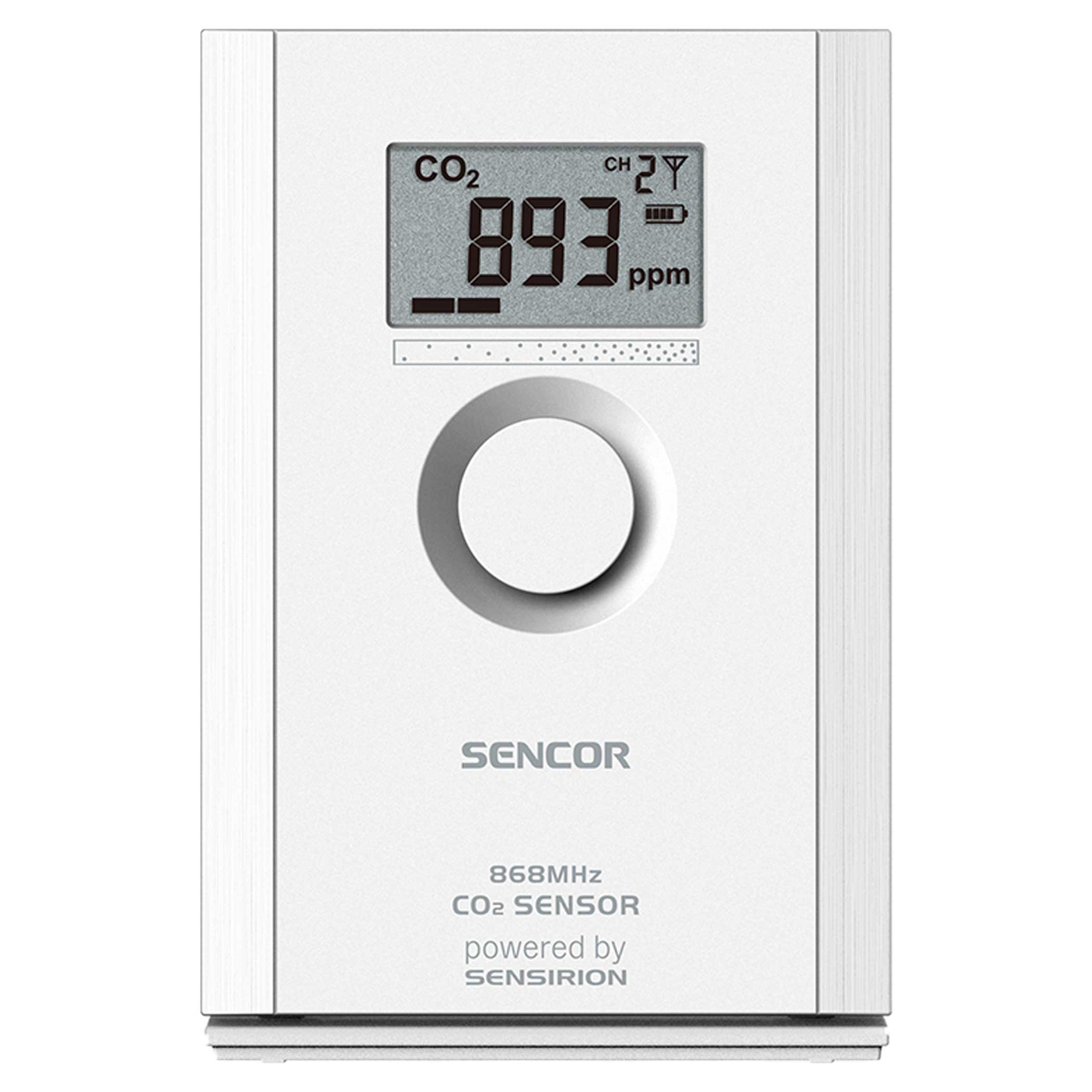

LCD Display to Show CO2 Value and Level
LCD Display with Diagonal 1.7" (4.3 cm)
For Use with Model: SENCOR SWS 16600
Display of Current Value or Average Value of CO2 Concentration Over 1 h / 8 h / 24 Hours
Power Using Rechargeable Batteries or Micro USB Power
Battery Power Level Indicator
Battery Life: Around 40 Days (Base on 10 Minutes Detection Interval)
Detection Interval: 1 Minute (Available with USB Power Supply Only) / 10 min. (Default) / 20 min. / 30 min.
Transmission Interval of Measured CO2 Value: 60 s
Unit: ppm (Parts Per Milion)
Desktop or Wall Mountable
Number of Selected Channels: 4 (CH 1~4)
(Model SENCOR SWS 16600 Display One Channel of CO2 Value Only)
Long-Range Transmission: up to 150 m (in Open Area)
Sensor Transmission Frequency: 868 MHz
Sensor Specifications: SENSIRION CO2 Sensor SCD Series
Battery Power: 3 x AA 1.2V NiMH 2000 mAh (Rechargeable Batteries Included)
USB Power: Micro USB Input (DC 5 V / 500 mA)
USB Cable Included (Adapter Not Included)
Measurement Precision: ±(50ppm + 5%)
Detected Range: 400 to 5000 ppm
Detected Resolution: 1 ppm
Dimensions of Wireless Sensor: (w / h / d) 82 x 121 x 43 mm
Weight of Wireless Sensor: 217 g (with Batteries)
